TZT New 4 12 16 20 Key 4*4 Membrane Switch Keypad 1x4 3x4 4x4 4*5 Matrix Array Matrix keyboard for arduino smart car

TZT New 4 12 16 20 Key 4*4 Membrane Switch Keypad 1x4 3x4 4x4 4*5 Matrix Array Matrix keyboard for arduino smart car
TZT New 4 12 16 20 Key 4*4 Membrane Switch Keypad 1x4 3x4 4x4 4*5 Matrix Array Matrix keyboard for arduino smart car
TZT New 4 12 16 20 Key 4*4 Membrane Switch Keypad 1x4 3x4 4x4 4*5 Matrix Array Matrix keyboard for arduino smart car
TZT New 4 12 16 20 Key 4*4 Membrane Switch Keypad 1x4 3x4 4x4 4*5 Matrix Array Matrix keyboard for arduino smart car
TZT New 4 12 16 20 Key 4*4 Membrane Switch Keypad 1x4 3x4 4x4 4*5 Matrix Array Matrix keyboard for arduino smart car
TZT New 4 12 16 20 Key 4*4 Membrane Switch Keypad 1x4 3x4 4x4 4*5 Matrix Array Matrix keyboard for arduino smart car

TZT New 4 12 16 20 Key 4*4 Membrane Switch Keypad 1x4 3x4 4x4 4*5 Matrix Array Matrix keyboard for arduino smart car

No review yet. Write Review
$1.32 $0.60

Vendor : FETCH BARK LLC

Product Type :

Add To Wishlist
-
+
In Stock SOLD OUT

SPECIFICATIONS

Application: Computer

Brand Name: TZT

Condition: New

Dissipation Power: ..

Electronic products: For Arduino STM

Hign-concerned Chemical: None

Operating Temperature: -40-+85

Origin: Mainland China

Package: Other

Supply Voltage: ..

Type: Voltage Regulator

is_customized: Yes

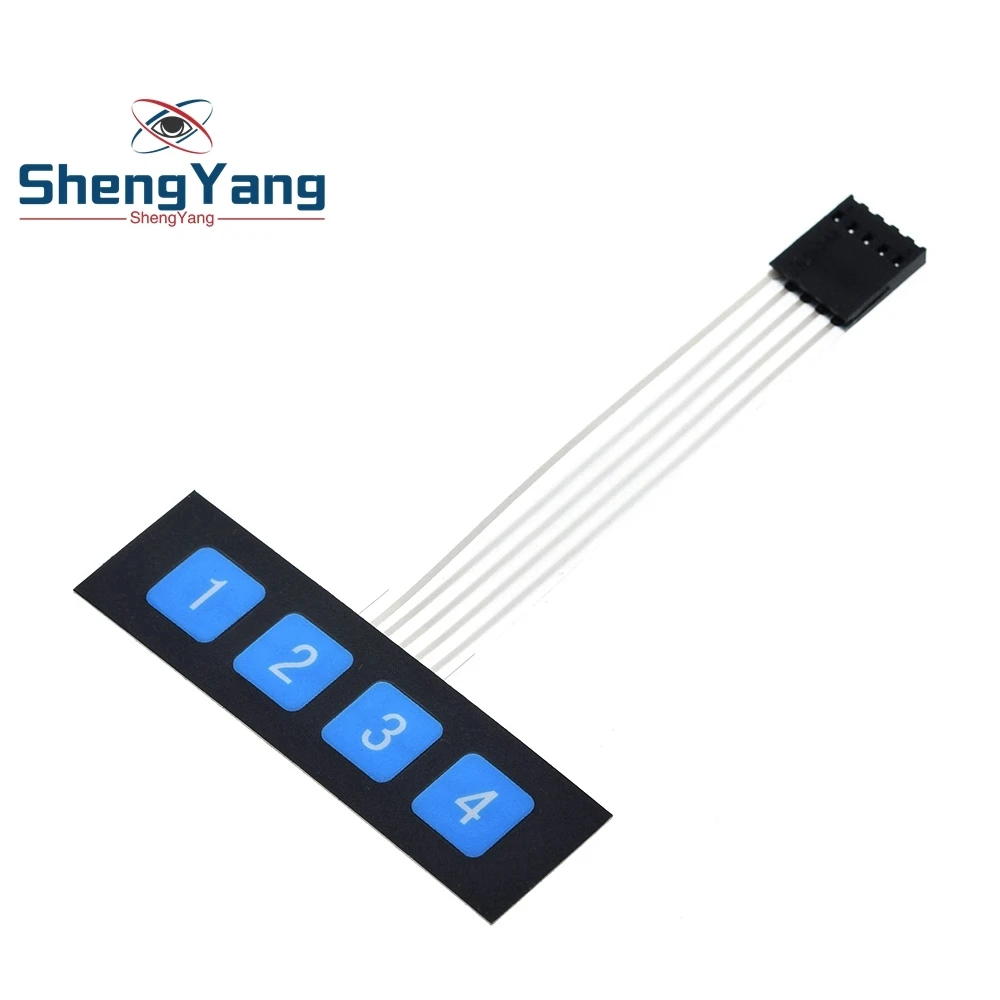

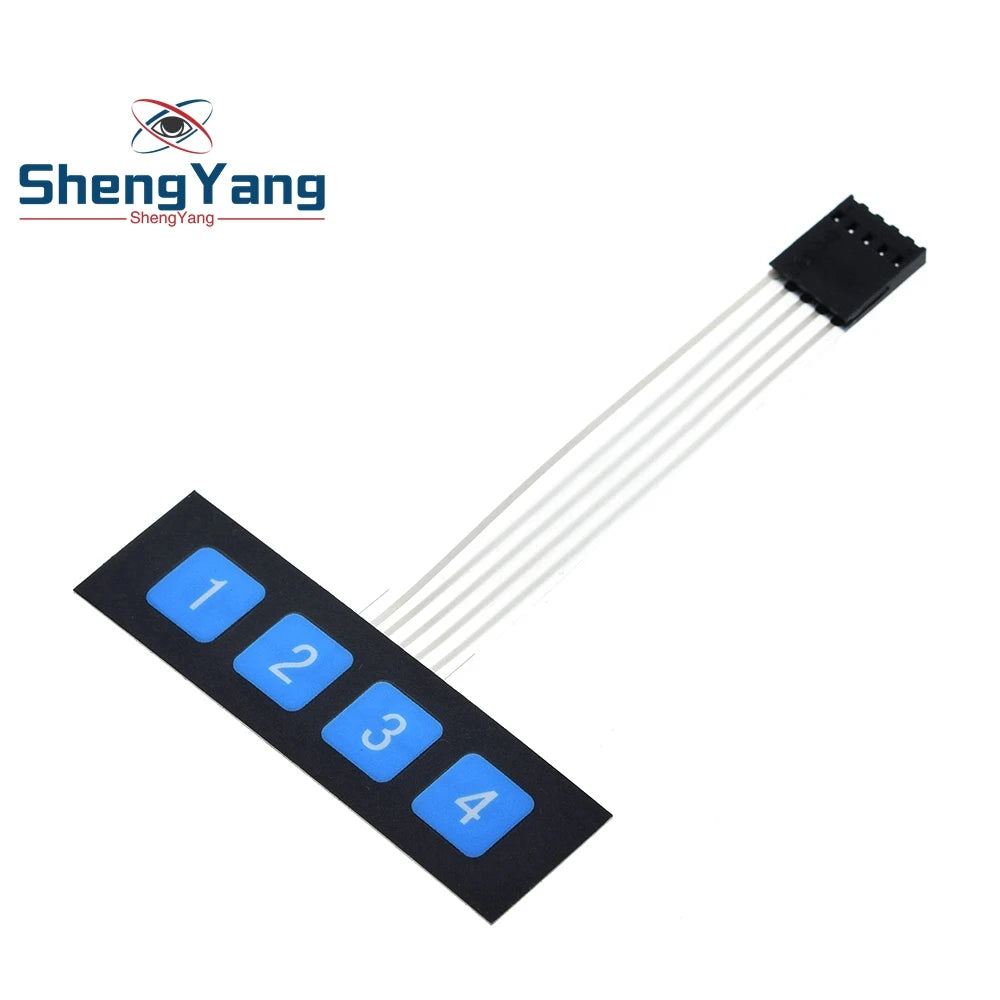

1x4 matrix keyboard:



100% Brand new and good quality

1*4 Matrix membrane switch with FPC circuit
Single chip microcomputer extended keyboard
Precise and professional made, stable performance
Pad Size: 68*20mm
Total Length: 107mm

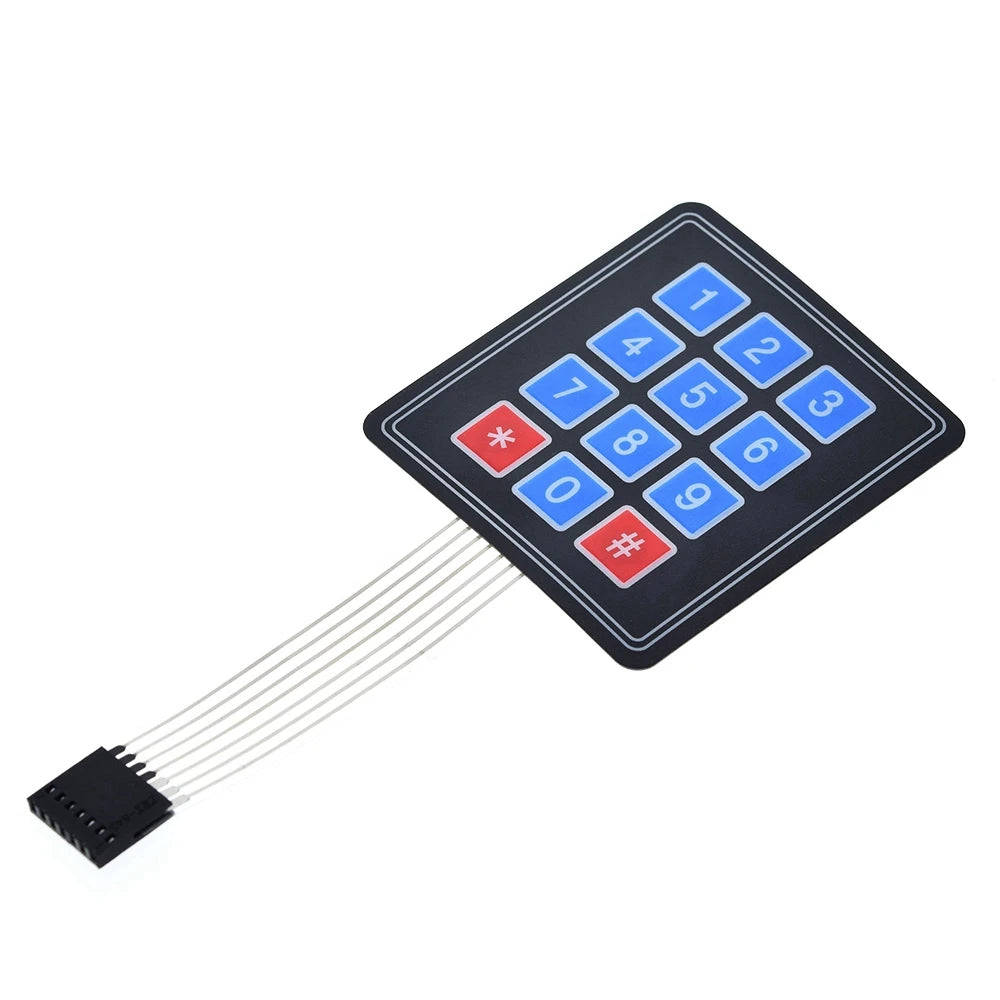

3x4 matrix keyboard:



Pad Size: 69.2 x 76.9 x 0.8mm
Cable Length: 3-1/3" or 86mm (include connector)
Connector: Dupont 7 pins, 0.1" (2.54mm) Pitch
Mount Style: Self-Adherence
Max. Circuit Rating: 35VDC, 100mA
Insulation Spec.: 100M Ohm, 100V
Dielectric Withstand: 250VRms (60Hz, 1min)
Contact Bounce: <=5ms
Life Expectancy: 1 million closures
Operation Temperature: -20 to +40 °C

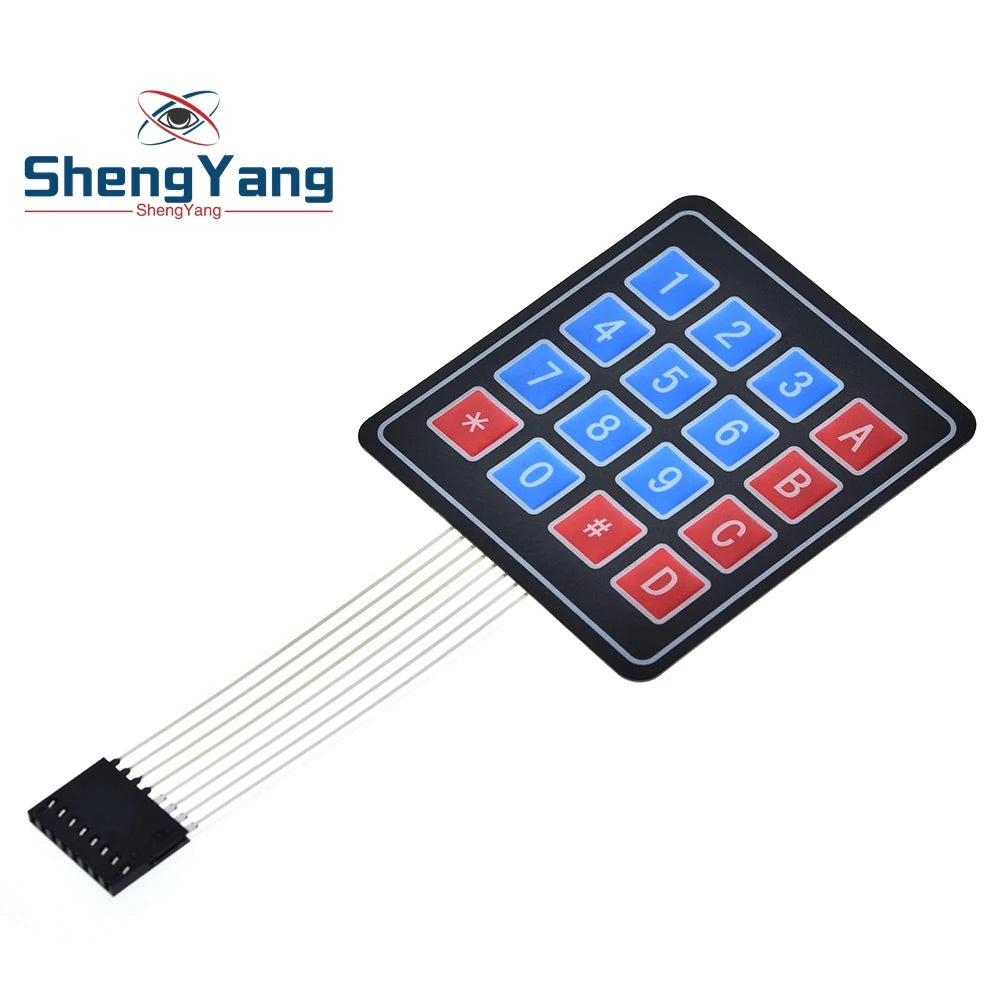

4x4 matrix keyboard:
Contact resistance of 500 ()
Insulation resistance 100M ()
Key Operating Force 150-200N
Rebound time 1 (ms)
Life of 100 million (times)
Operating Temperature 60 ()
1, the electronic characteristics
Circuit Rating: 35V (DC), 100mA, 1W
Contact resistance: 10 ~ 500
(Varies according to the lead lengths and different from those of the material used)
Insulation resistance: 100M 100V
Dielectric Strength: 250VRms (50 ~ 60Hz 1min)
Electric shock jitter: <5ms
Life span: tactile type: one million times
2, the mechanical properties
Operating pressure: Touch feeling: 170 ~ 397g (6 ~ 14oz)
Switch travel: touch-type: 0.6 ~ 1.5mm
3, the environment parameters
Operating temperature: -40 to +80
Storage temperature: -40 to +80
Temperature: from 40,90% to 95%, 240 hours
Vibration: 20G, max. (10 ~~ 200Hz, the Mil-SLD-202 M204.Condition B)

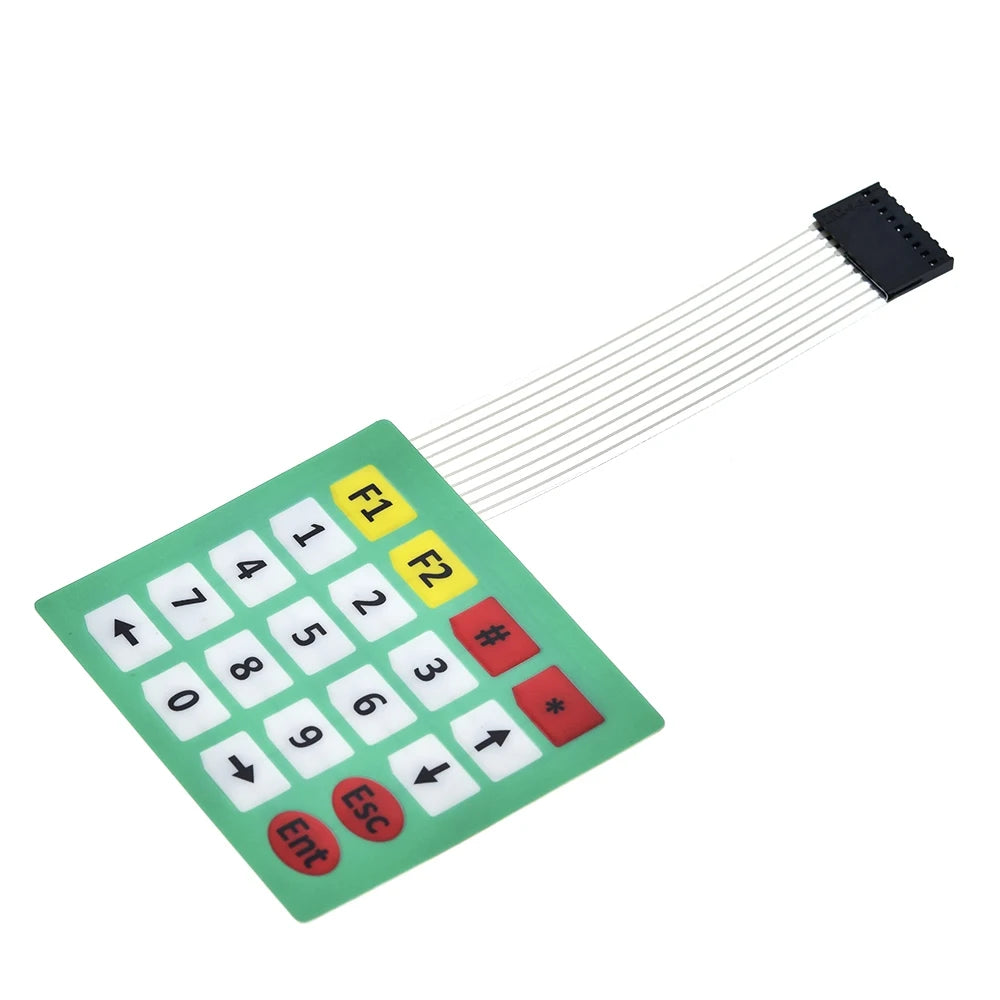

4x5 matrix keyboard:

1. Panel Size: 75*85mm.

2. Length: 18CM.

3. Insulation Resistance:100M Ω 100V.

4. Withstand Voltage:250V Rms.(50-60Hz lmin)

5. Storage Temperature: +15°- +35°.

6. Storage Humidity:70-90.

picture fivepicture onepicture sixpicture twopicture threepicture four
