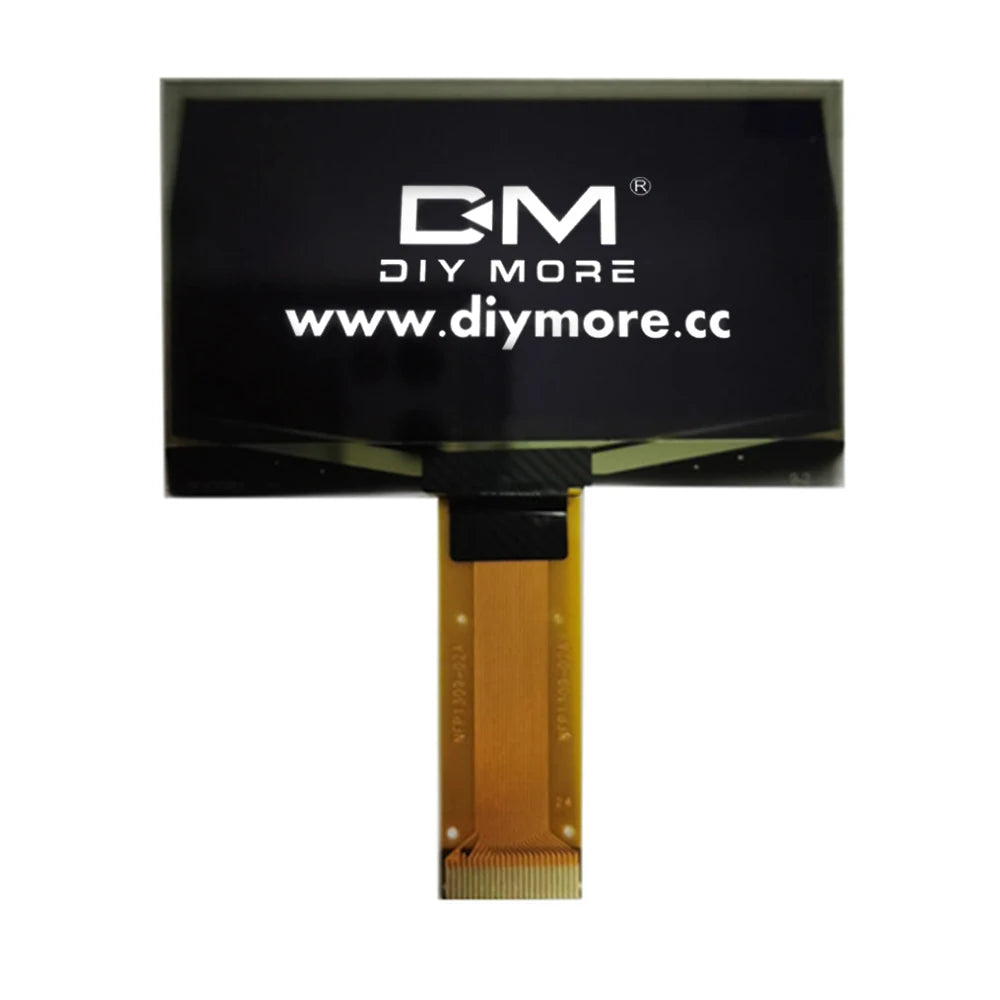

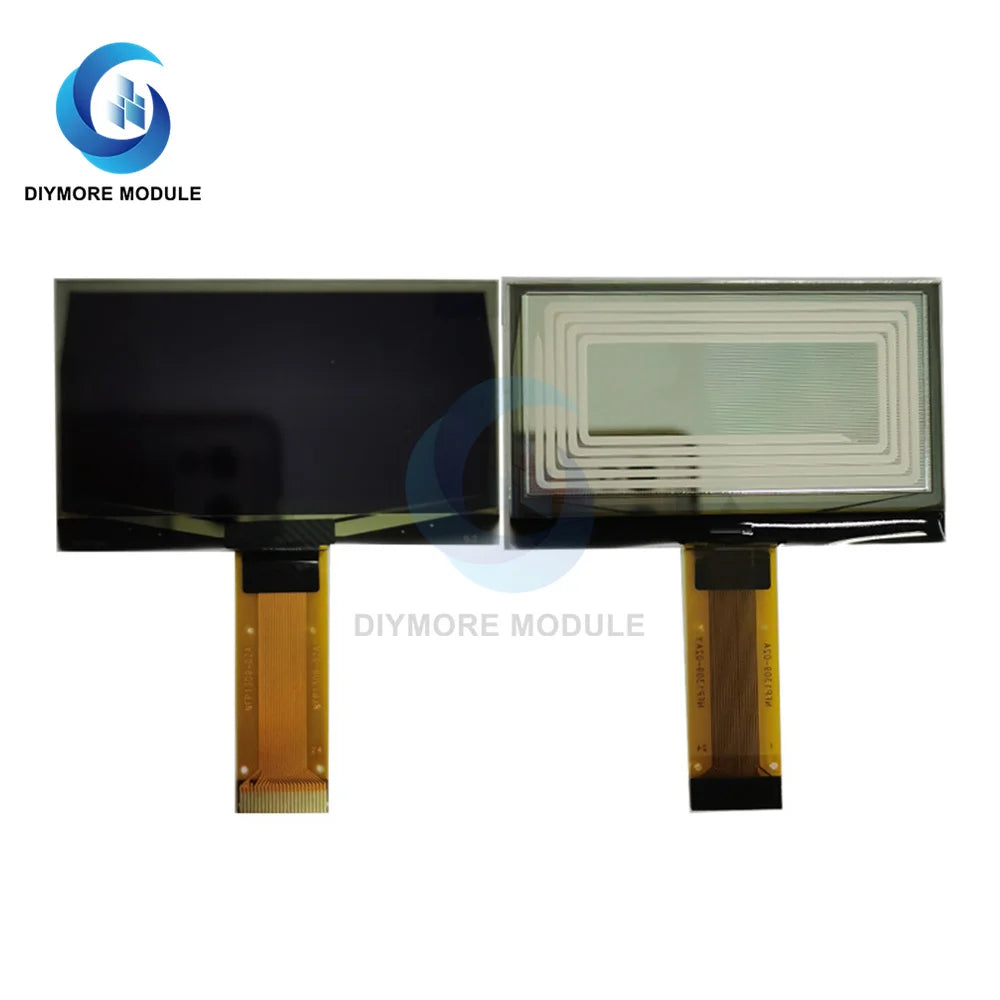

2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen

2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen
2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen

2.42 1.54 Inch OLED Monochrome Display SSD1309 Resolution 23pin SPI Dot Matrix 128*64 Yellow/Blue/Green/White LCD Screen

No review yet. Write Review
$16.92 $7.69

Vendor : FETCH BARK LLC

Product Type :

Add To Wishlist
-
+
In Stock SOLD OUT

SPECIFICATIONS

Brand Name: diymore

Display Mode: 0

Hign-concerned Chemical: None

Origin: Mainland China

Resolution: 128*64

Type: TFT

is_customized: Yes

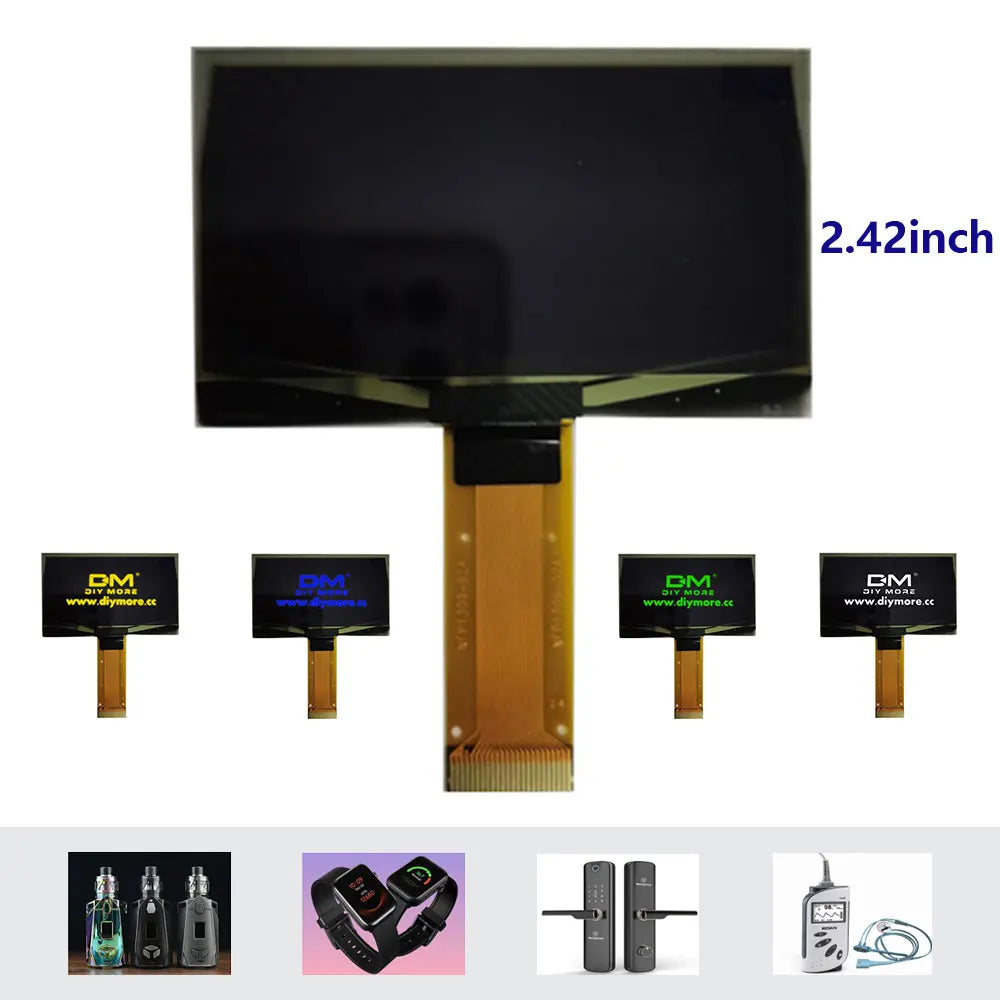

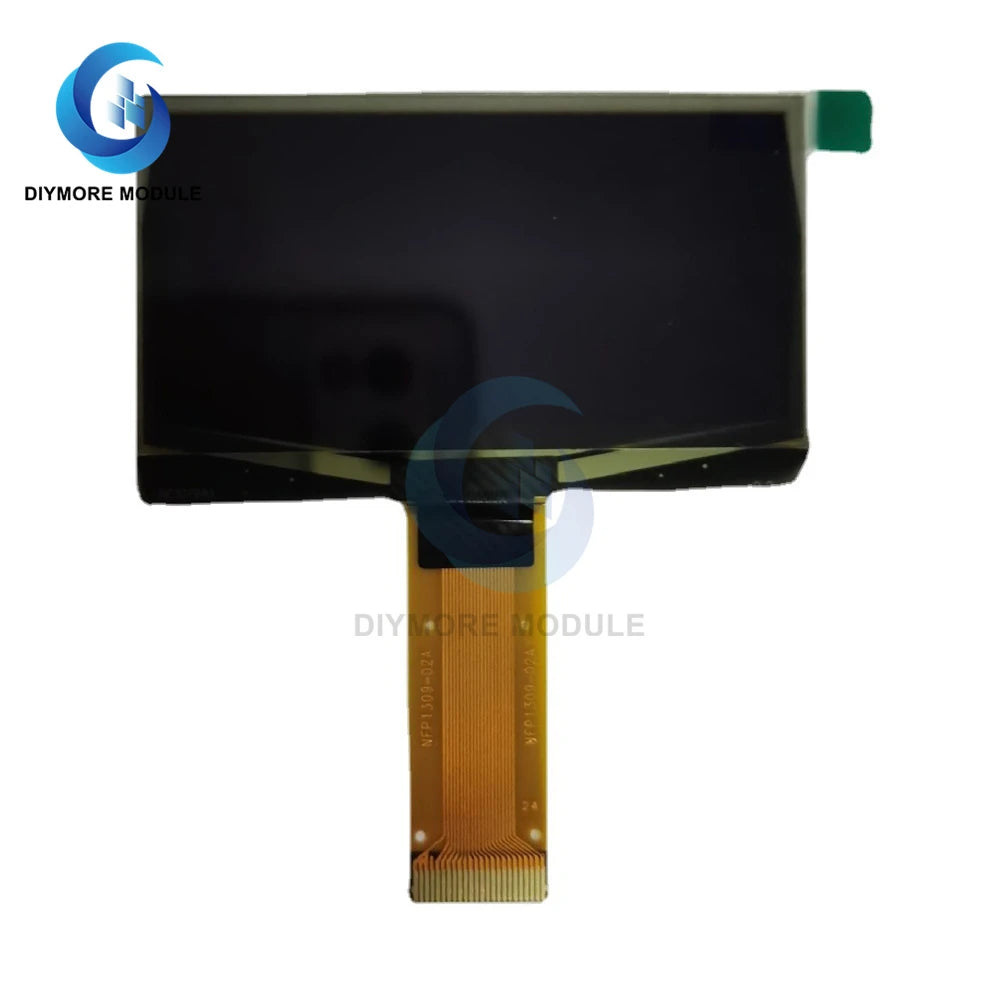

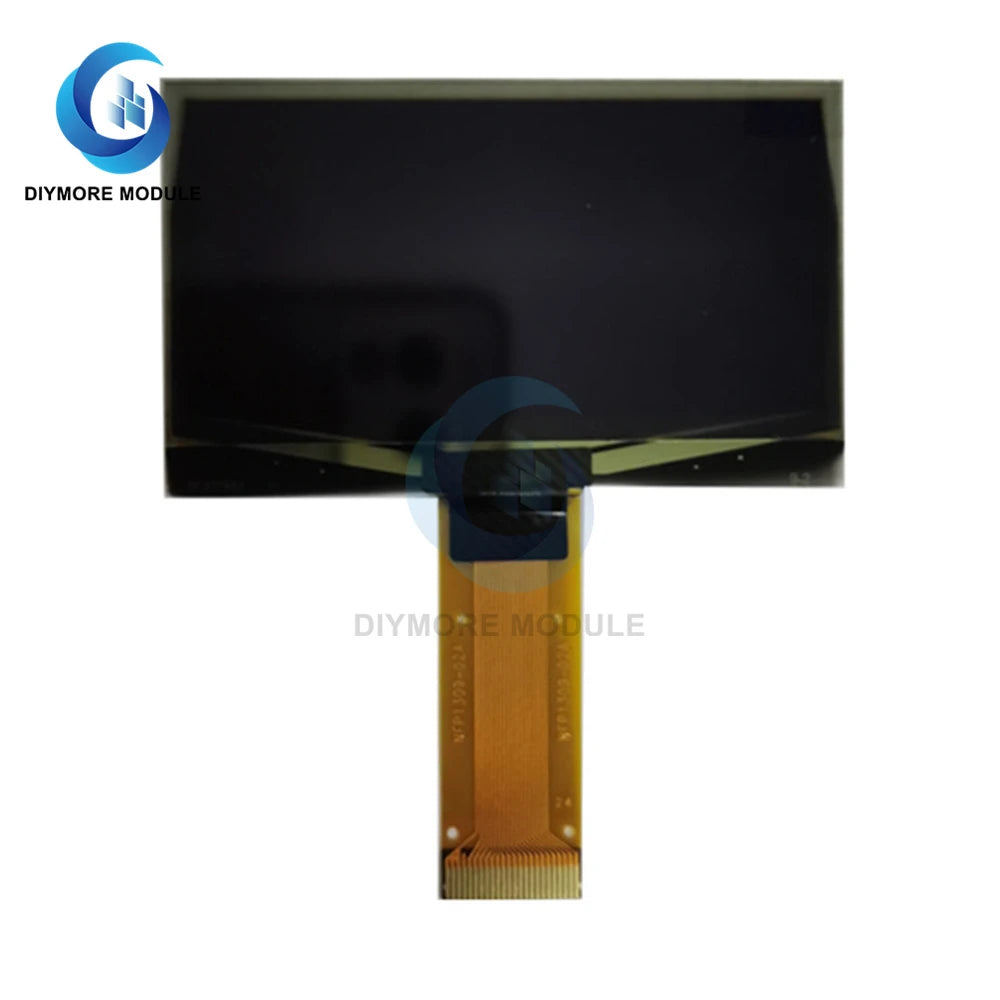

2.42 Inch:
Product selling point:
1. Adopt SSD1309 chip
2.2.42 inch monochrome yellow light OLED LCD display

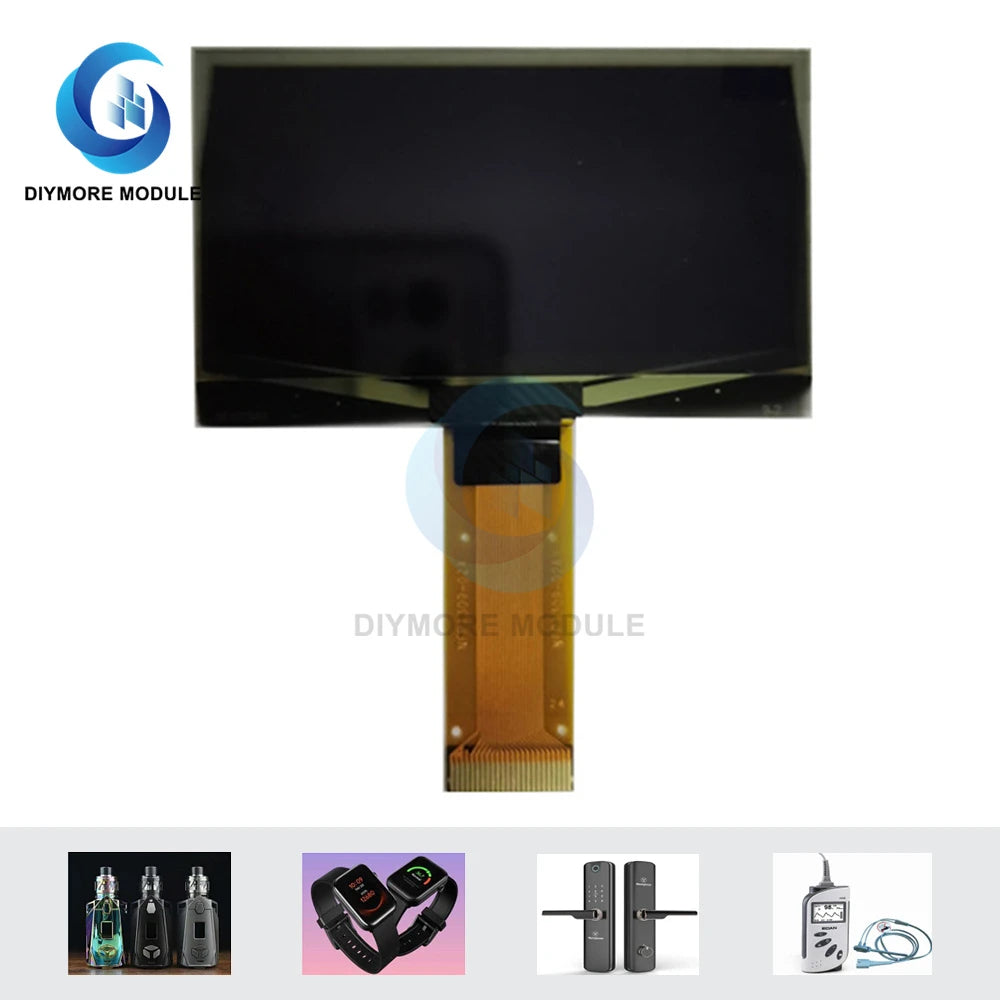

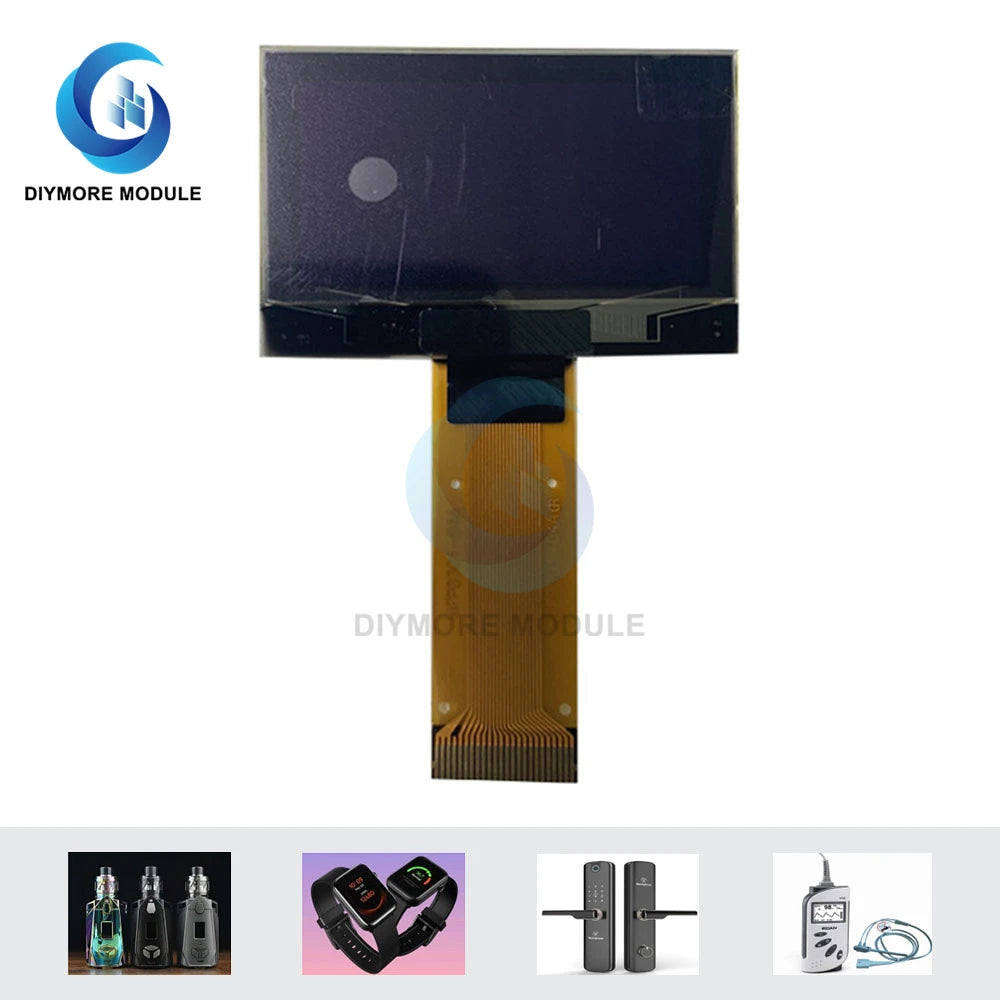

3. Wide application
4. Cost-effective
5. Small size

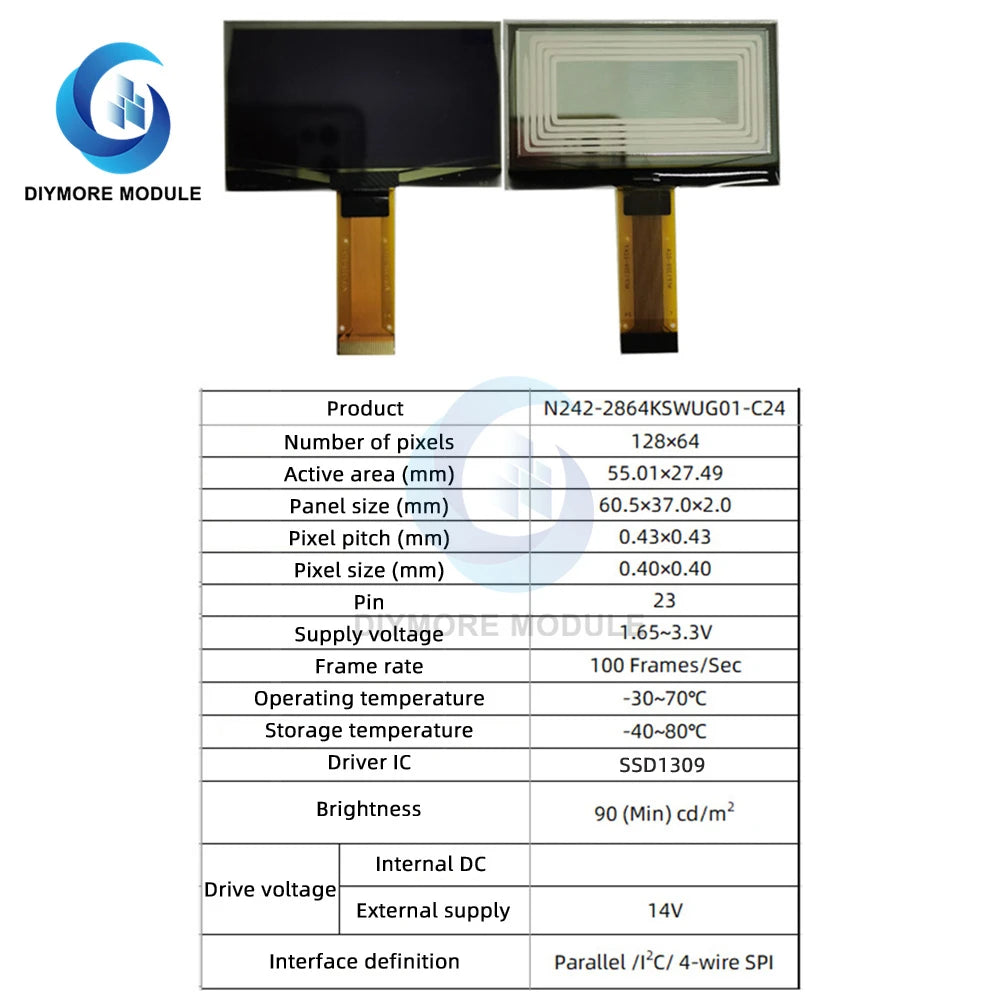

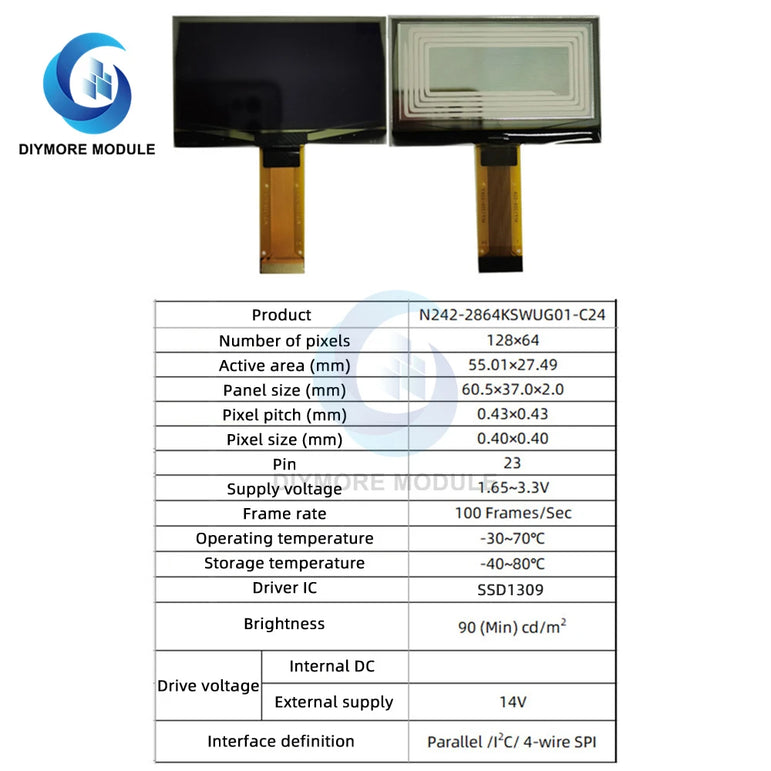

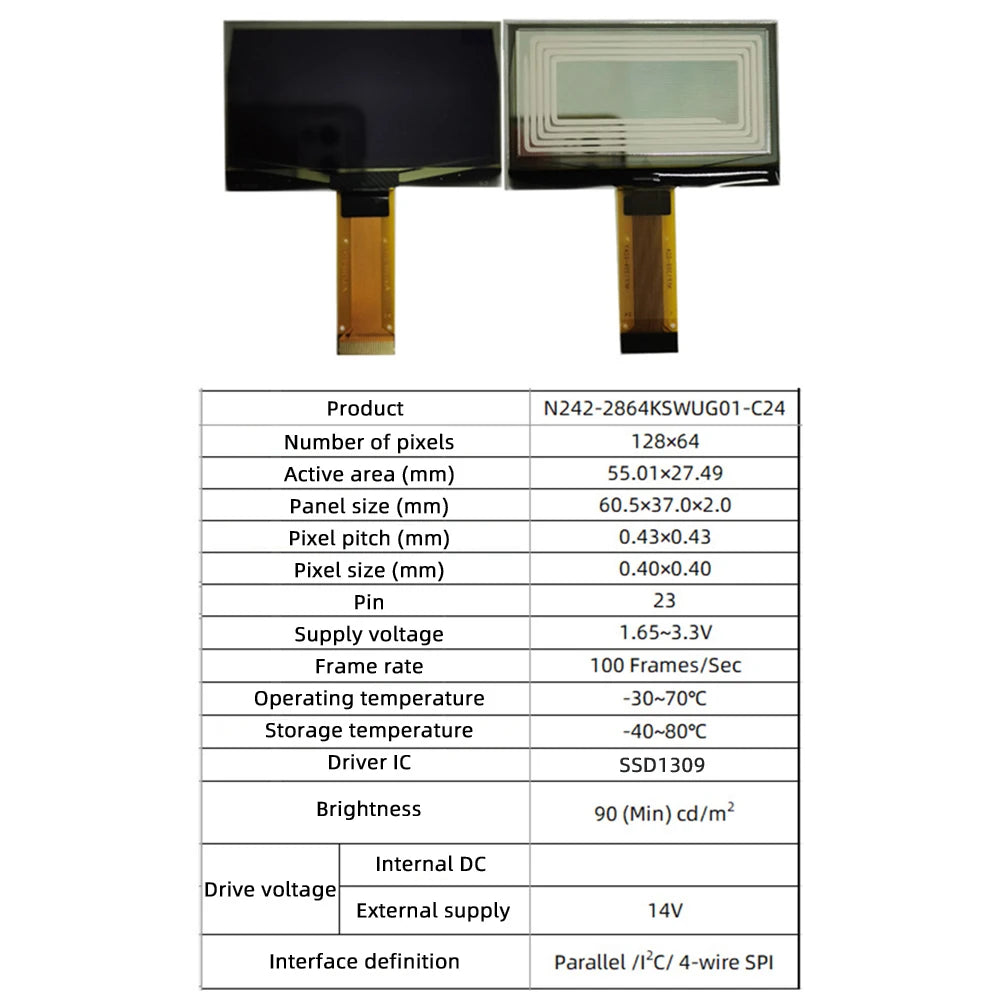

Product parameters:
Driver chip: SSD1309
Diagonal screen size: 2.42''
Number of pixels: 128*64

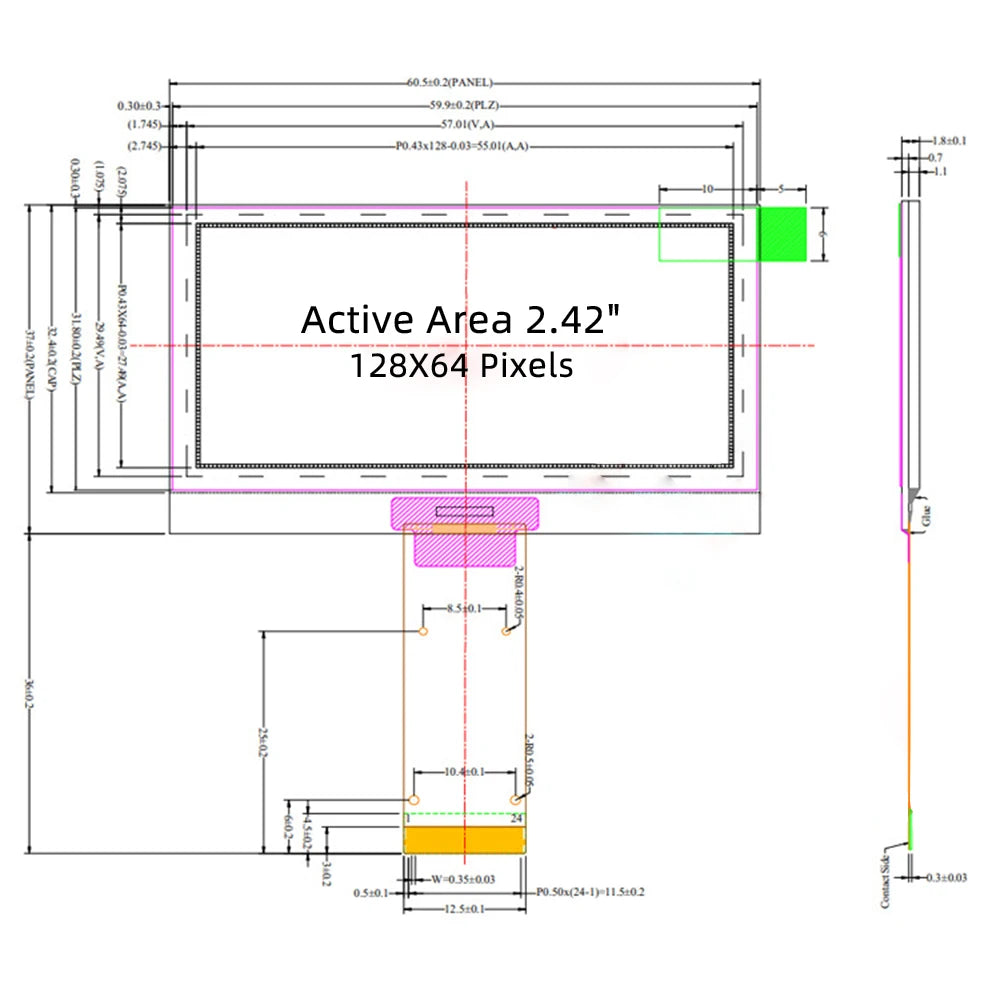

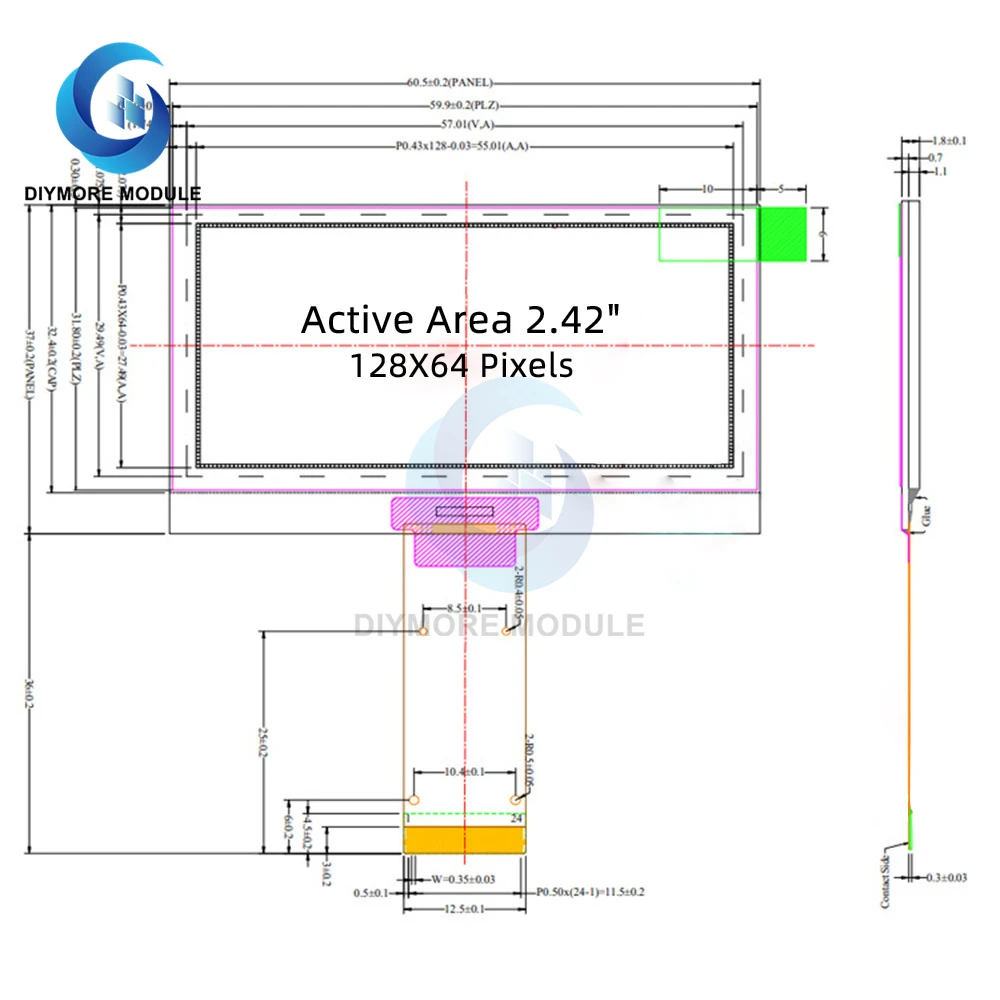

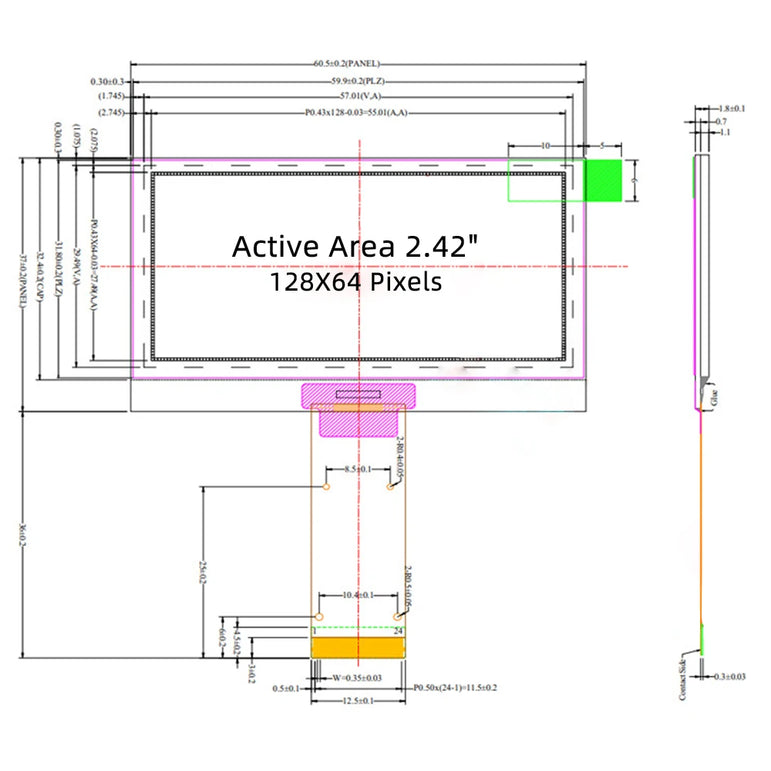

Effective area (mm): 55.01*27.49
Panel size (mm): 60.5*37.0*2.0
Pixel pitch (mm): 0.43*0.43
Pixel size (mm): 0.40*0.40
Pin: 23
Color: Monochrome (yellow)
Power supply voltage: 1.65~3.3V
Frame rate: 100 frames/sec
Working temperature: -30~70℃
Storage temperature: -40~80℃
Brightness 90 (Min) cd/m2
Internal drive voltage: DC/DCEnable
External supply: 14V
Interface: Parallel/I2C/4-wire SPI

Package Included:
Type A 2.42 inch OLED monochrome display, plug in 23pin SPI dot matrix SSD1309, resolution 128*64 yellow *1

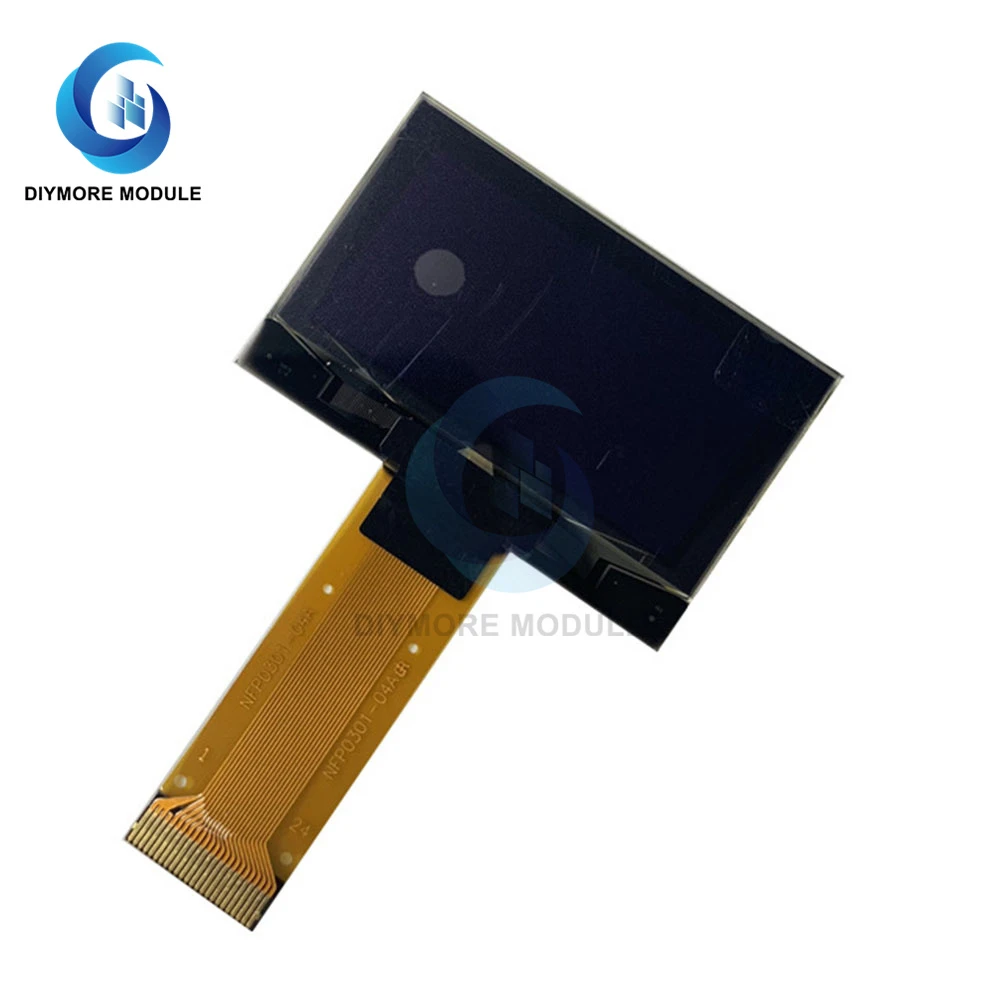

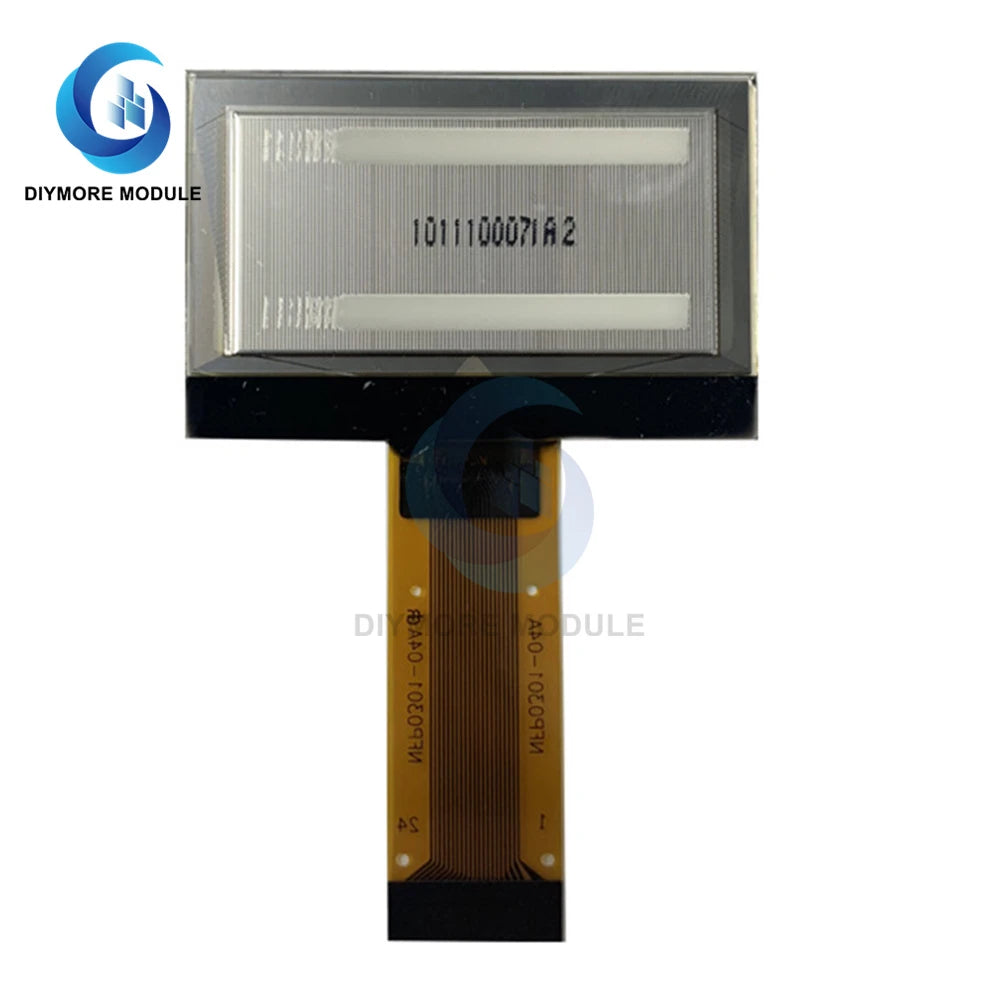

1.54 Inch:
Product selling point:
1. Adopt SSD1309 chip
2.1.54 inch monochrome white light OLED LCD display
3. Wide application
4. Cost-effective
5. Small size

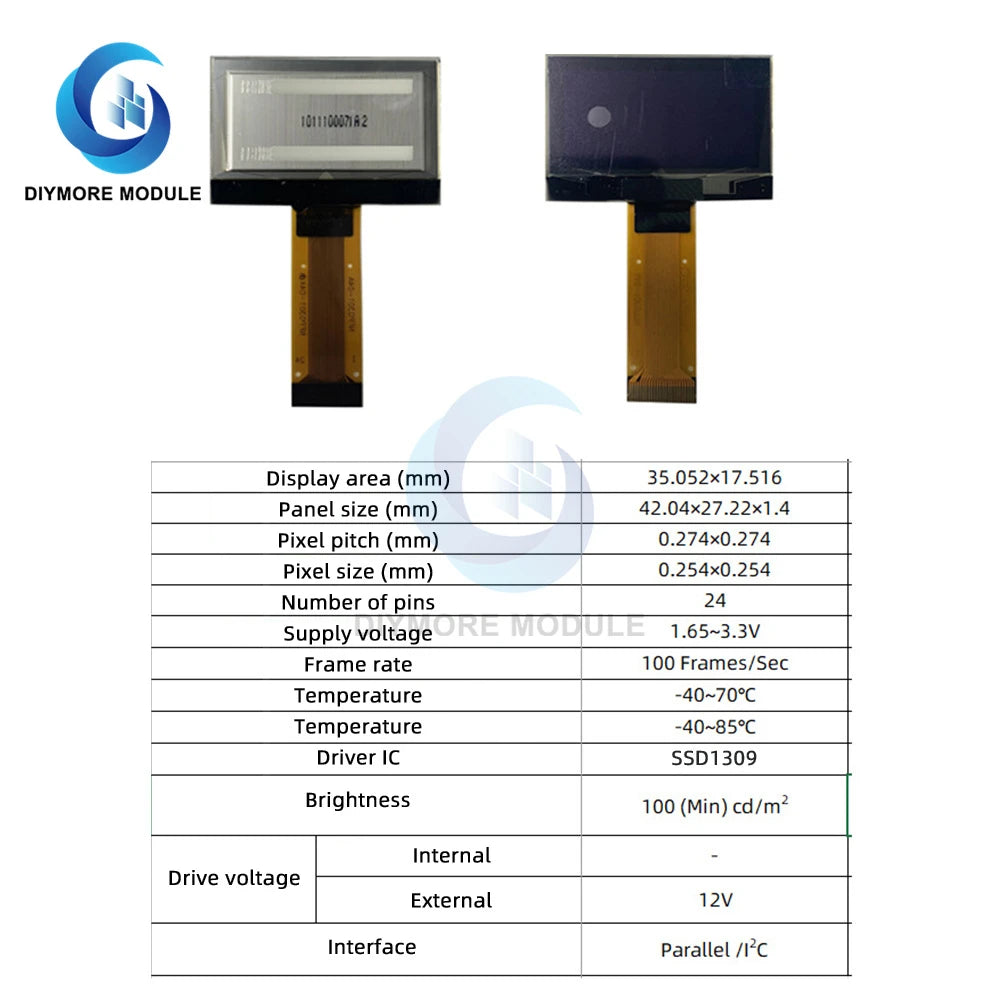

Product parameters:
Driver chip: SSD1309
Diagonal screen size: 1.54''
Number of pixels: 128*64
Effective area (mm): 35.052*17.516

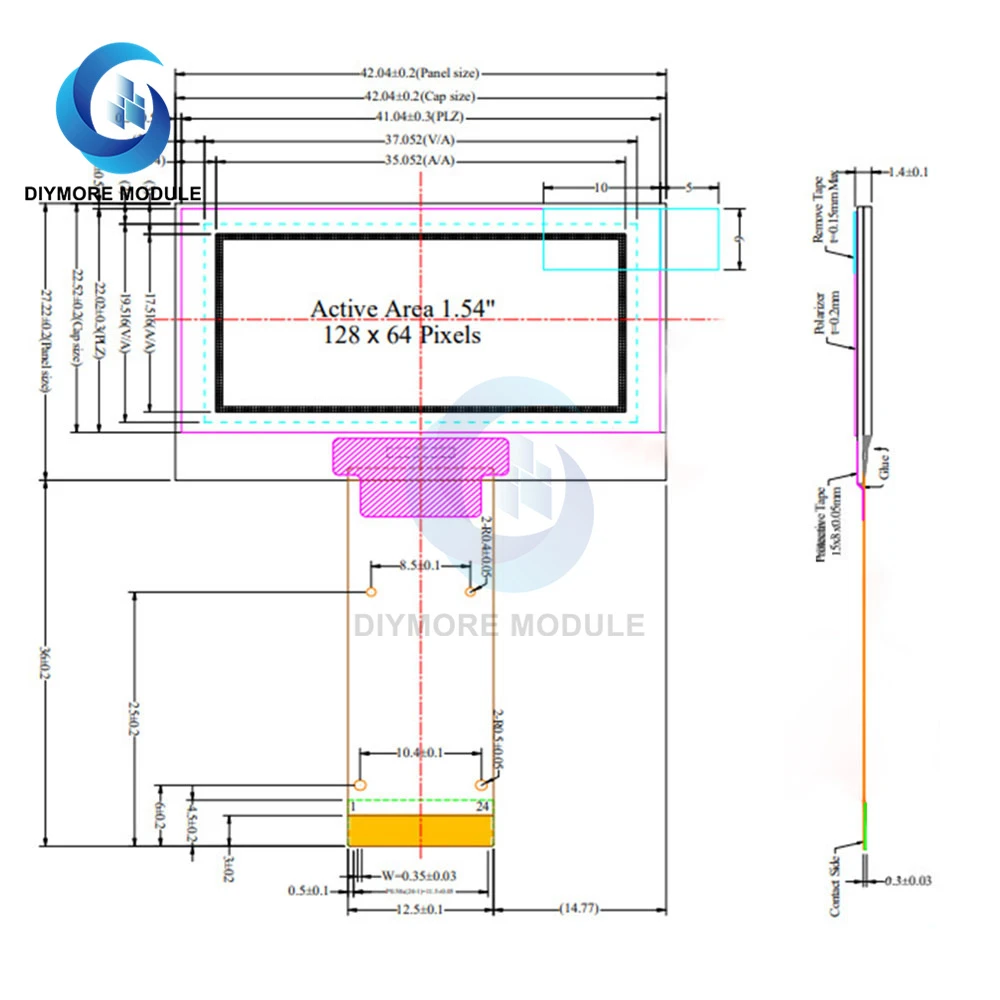

Panel size (mm): 42.04*27.22*1.4
Pixel pitch (mm): 0.274*0.274
Pixel size (mm): 0.254*0.254

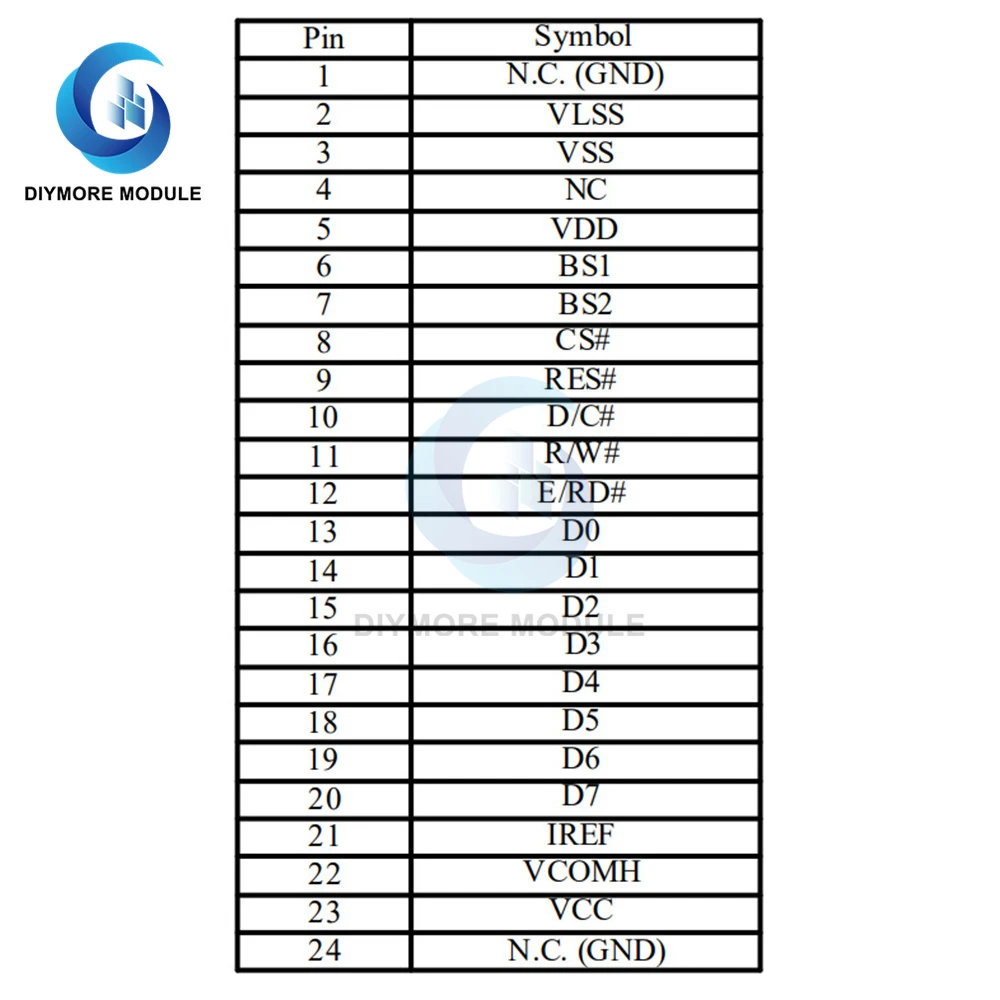

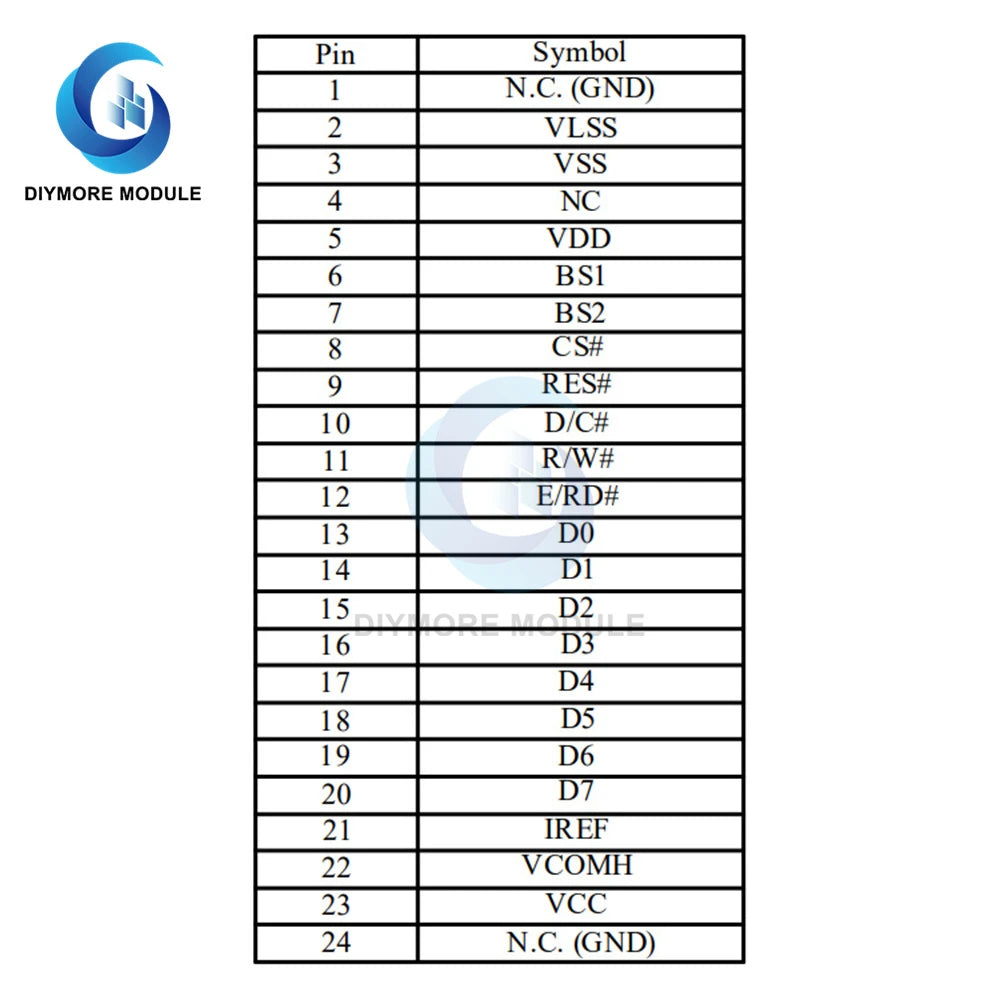

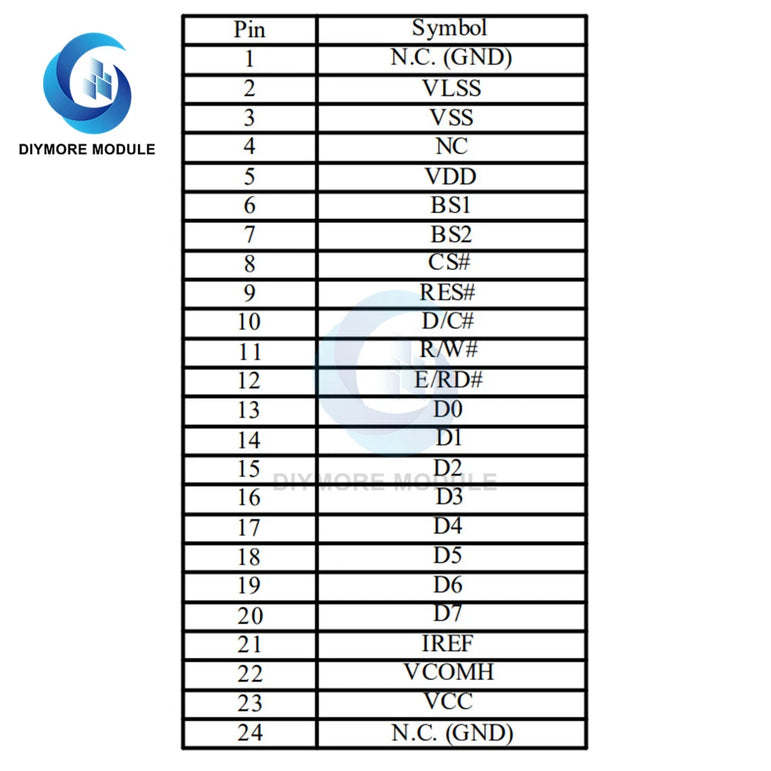

Pins: 24
Color: Monochrome (white)
Power supply voltage: 1.65~3.3V
Frame rate: 100 frames/sec
Working temperature: -40~70℃
Storage temperature: -40~85℃
Driver IC: IC SSD1309
Brightness: 100 (Min) cd/m2
External supply: 12V

Package Included:
1.54 inch OLED monochrome display, plug in 24pin SSD1309, resolution 128*64 monochrome dot matrix screen module 12864 white display *1
