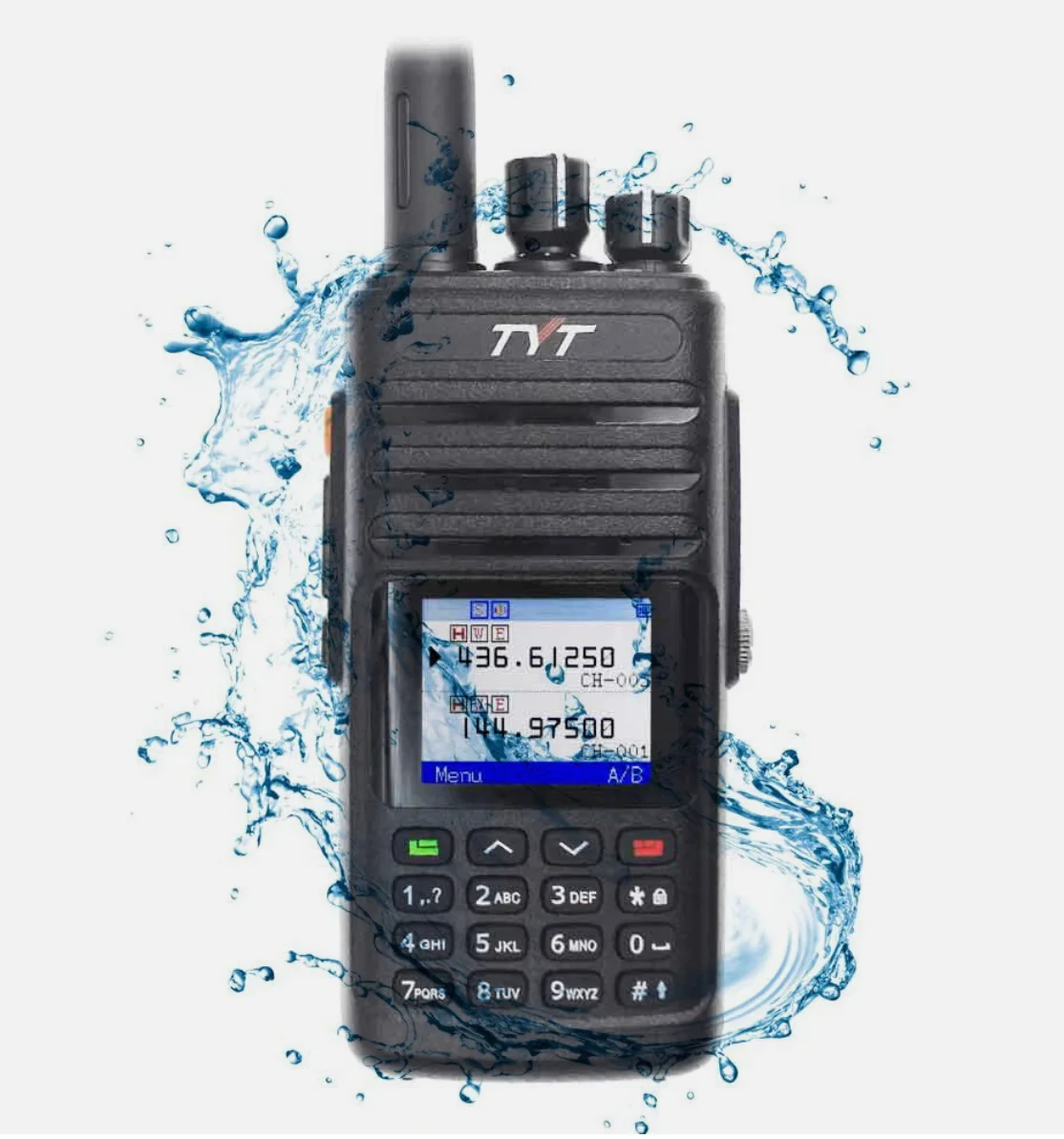

TYT TH-UV8200 10W IP67 Waterproof Transceiver Dual Band Long Distance Ham Radio

TYT TH-UV8200 10W IP67 Waterproof Transceiver Dual Band Long Distance Ham Radio
TYT TH-UV8200 10W IP67 Waterproof Transceiver Dual Band Long Distance Ham Radio
TYT TH-UV8200 10W IP67 Waterproof Transceiver Dual Band Long Distance Ham Radio
TYT TH-UV8200 10W IP67 Waterproof Transceiver Dual Band Long Distance Ham Radio
TYT TH-UV8200 10W IP67 Waterproof Transceiver Dual Band Long Distance Ham Radio
TYT TH-UV8200 10W IP67 Waterproof Transceiver Dual Band Long Distance Ham Radio

TYT TH-UV8200 10W IP67 Waterproof Transceiver Dual Band Long Distance Ham Radio

No review yet. Write Review
$208.32 $236.72

Vendor : FETCH BARK LLC

Product Type :

Add To Wishlist
Australia Standard US EU
-
+
In Stock SOLD OUT

SPECIFICATIONS

Battery Included: Yes

Brand Name: DIXSG

Hign-concerned Chemical: None

Is_Display: Yes

Maximum Range: 10km-50km

Model Number: TH-UV8200

Origin: Mainland China

Output Power(w): 5w-10w

Walkie Talkie Type: Portable

Waterproof / Water-Resistant: IP67

Features:

  1. IP67 waterproof analog two way radio

  2. Dual Band,dual display,Duan wait and dual standby

  3. 256 groups of memory channels

  4. Wide/Narrow bandwidth selection (25kHz/12.5kHz)

  5. Handsfree VOX function

  6. English/Chinese Voice prompt

  7. CTCSS/DCS encoding and decoding

  8. Non-standard CTCSS/DCS input

  9. Auto Scan

  10. ANI function

  11. FM radio receiver and 25 memory radio stations

  12. PC program

  13. 1750 Tone

  14. DTMF decoding and encoding

  15. Remote stun,kill and activated

  16. Man down

  17. 1.77 inch color Display

  18. Emergency alarm

  19. Roger beep

  20. Tail tone elimination

  21. Step: 0.50/2.50/5.00/6.25/10.0/12.5/25.0/37.5/50.0/100KHz


Specifications

General

Frequency Range

136-174MHz & 400-520MHz

Frequency Stability

±2.5ppm

Channel Capacity

256 channels

Operating Voltage

DC 7.2V

Antenna

SMA-Male Dual band High gain antenna

Antenna Impedance

50 ohm

Mode of operation

Same or different frequency simplex

Dimension (H*W*D)

120*55*33mm

Transmitter

RF POWER

High≤ 10W

Low ≥5W

Modulation Type (Wide/Narrow band)

16K Ø F3E/11K Ø F3E

Max. Fr. Deviation (Wide/Narrow band)

≤ 5KHz/≤ 2.5KHz

Adjacent Ch. Power(Wide/Narrow band)

≤-65dB/≤ -60dB

Spurious Power

≤7µW

Pre-emphasis character

6dB/Each frequency doubling the increment

Modulated noise

<-40dB

Current

≤2.8A(10W) ≤1.8A(5W)

DCS/CTCSS Frequency deviation

0.6KHz ±0.15KHz,0.4KHz± 0.1KHz

Intermediation sensitivity

8~12mV

Modulation distortion

<5%

Receiver

Reference Sensitivity

<-122dBm (12Db SINAD)

Audio power

1W

Audio Distortion

<5%

Blocking

≥85

Inter-modulation (wide/Narrow band)

≥60dB  ≥55dB

Adjacent Ch. Selection

≥65dB  ≥60dB

Note: Specifications will be revised without notice due to technical improvement. Thank you.

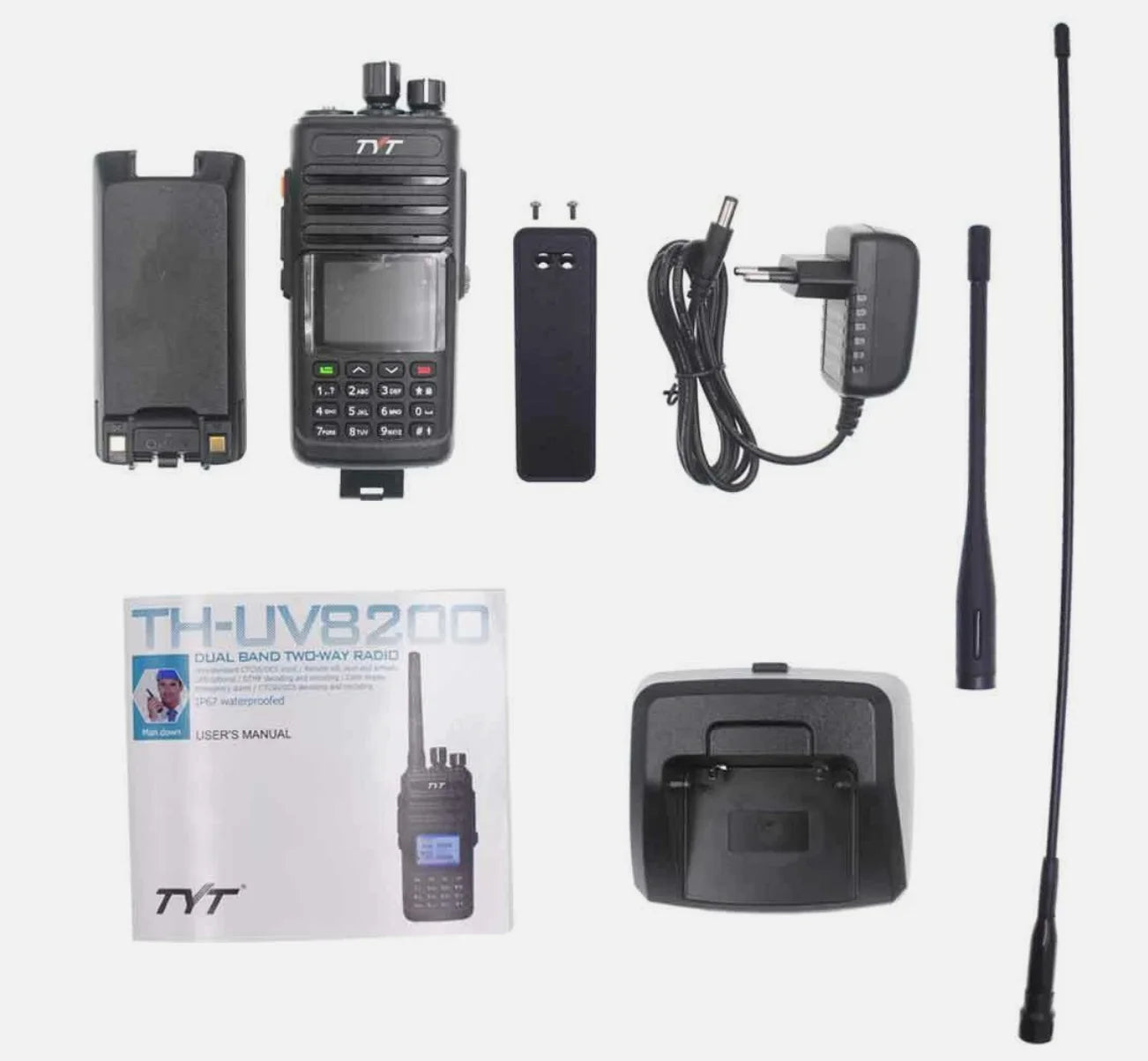

Unit contain:

1 x TH-UV8200 radio

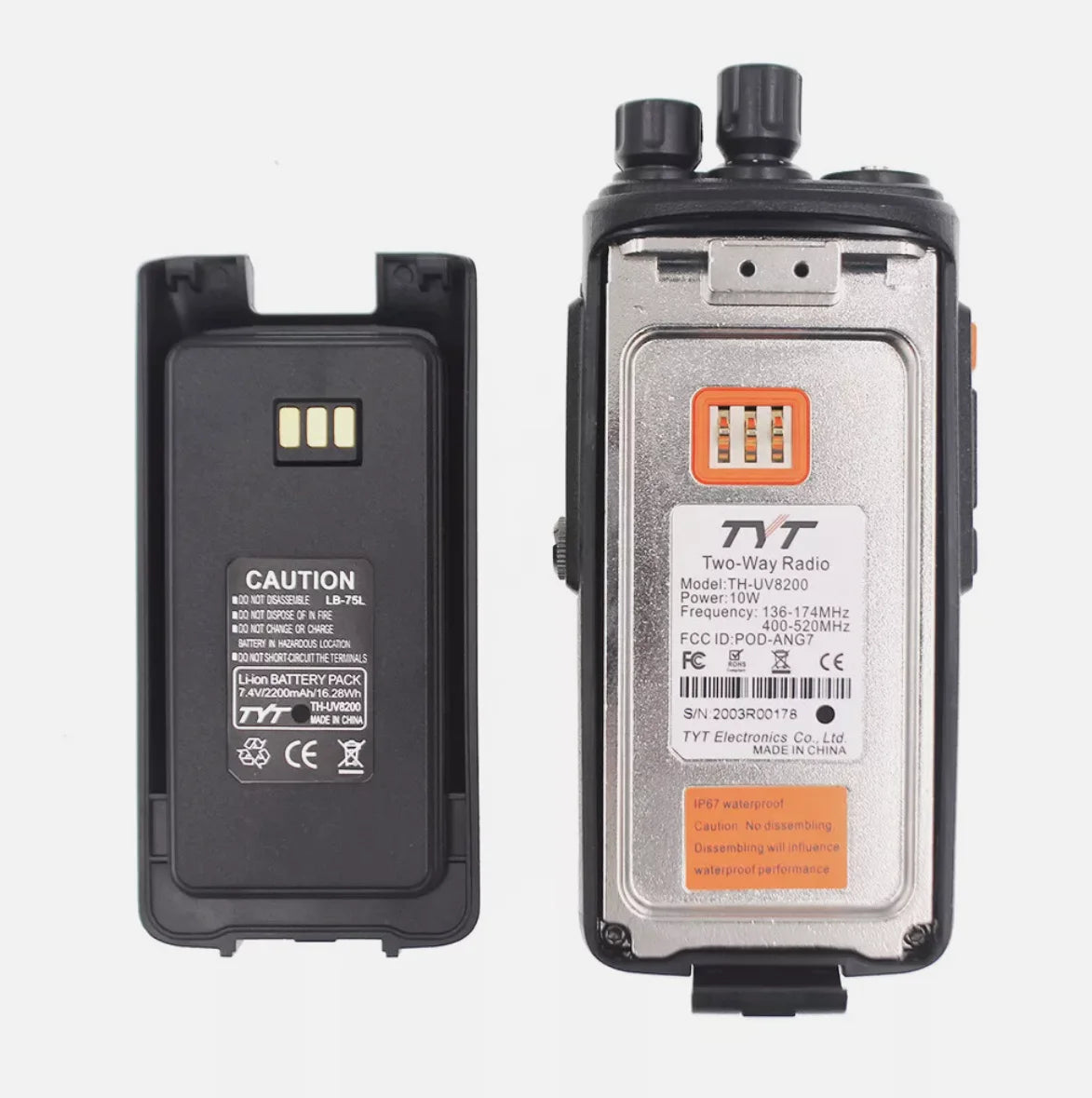

1 x 2200mAh Li-ion battery

2 x Antenna

1 x Belt clip

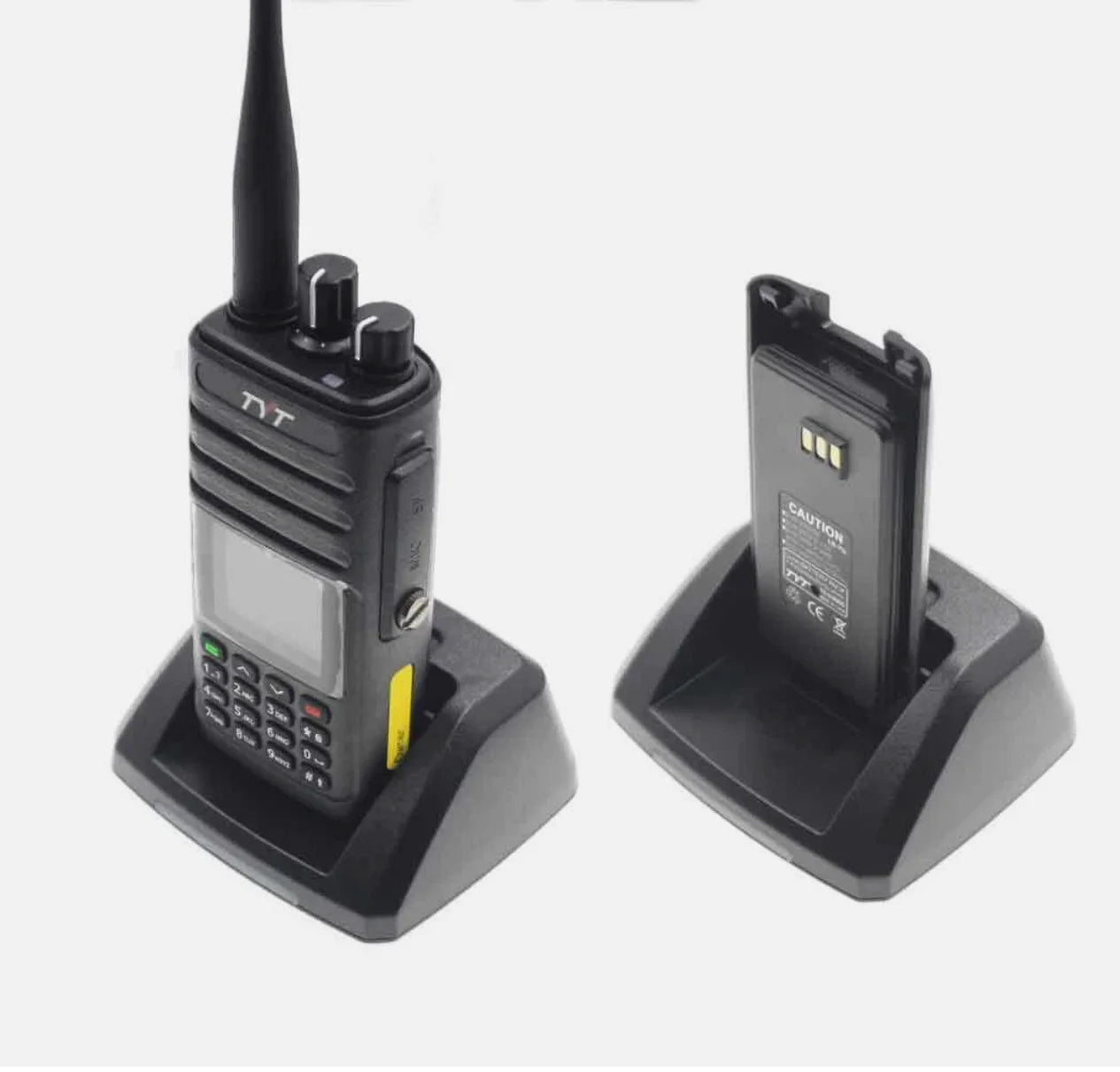

1 x Desktop charger (US, AU, UK or EU style depends on your country)

1 x 110-250V AC Adapter

1 x English Users’ manual
