SPECIFICATIONS

Brand Name: PROTECTION

Origin: Mainland China

Theory: Temperature Controller

Usage: Household

Features:

1. 1m Waterproof Probe: The digital temperature controller can be used in humid and water environment, you can use it in home brewing, refrigerator, pet feeding, reptile, tank, hatching, fermentation, nursery heat pad, accelerated germination.

2. Keep the temperature within the required range and ensure the accuracy: it is the ON/OFF control mode. Turn your device on one way and turn it off another. Make full use of stcs microcontroller and NTC probe to make the controller have high precision: ±1°F, temperature control range: -58~212°F, power consumption: ≤3W.

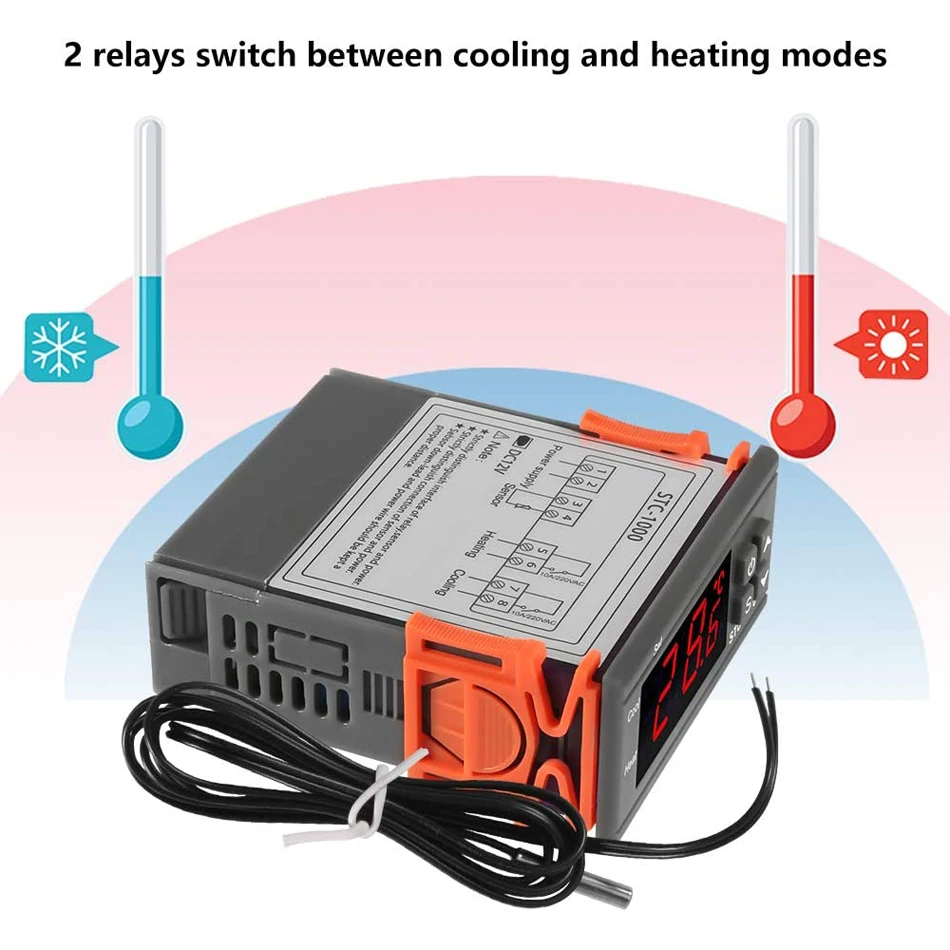

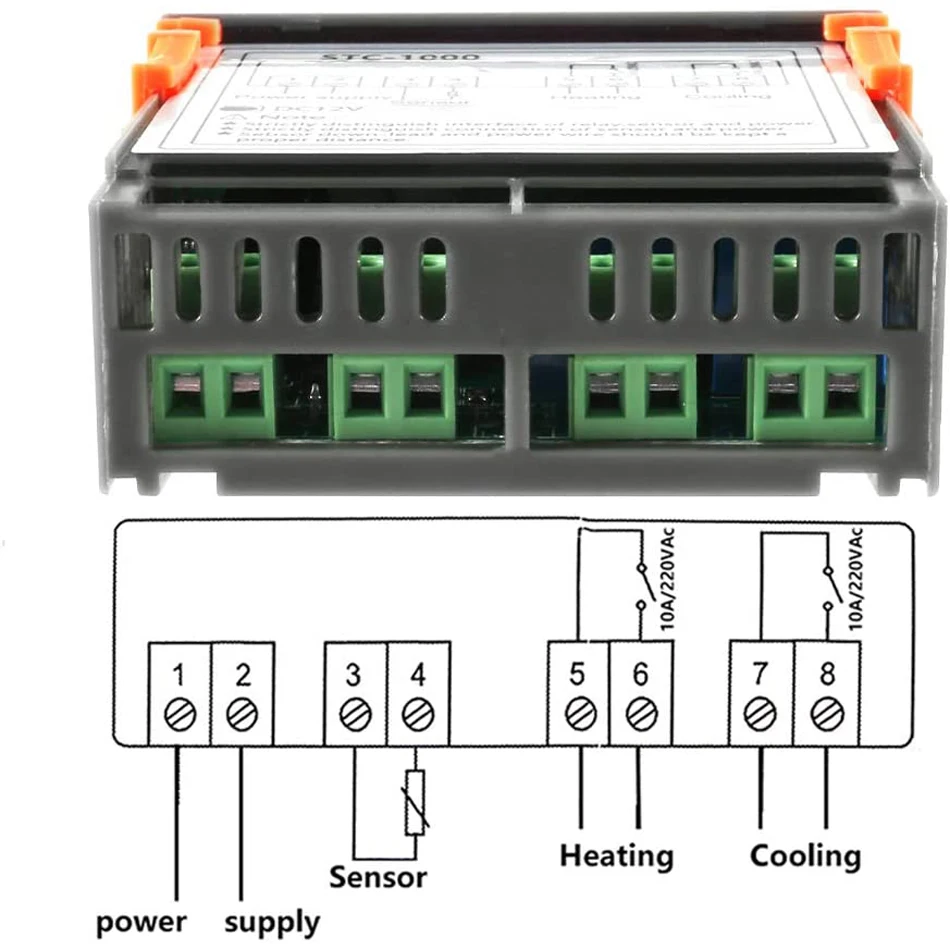

3. The heater and cooler are wire at the same time: the wiring between the heater and the cooler is no longer frequently replaced. This stcs-1000 temperature controller has 2 relays. Compared to other 1 relay temperature controller, you can connect 2 devices (heater and cooler) at the same time.

4. Plastic shell and compressor delay protection function: This digital display double relay thermostat adopts flames retardant plastic shell, designed with compressor delay protection, and alarms when the temperature exceeds the temperature limit. These all provide the best security for this thermostat.

5. Automatically switch between cooling and heating modes: Automatically switch between cooling and heating modes to keep your device within the ideal temperature range. The stable and reliable flames retardant plastic shell reaches V0 level and passes the EMC anti-interference test. Audible and visual alerts for high temperature and sensor failure issues.

Description:

The digital temperature controller can be used in humid and water environment, you can use it in home brewing, refrigerator, pet feeding, reptile, tank, hatching, fermentation, nursery heat pad, accelerated germination. Automatically switch between cooling and heating modes to keep your device within the ideal temperature range.

Specifications:

Material: plastic

Cable length: 1m

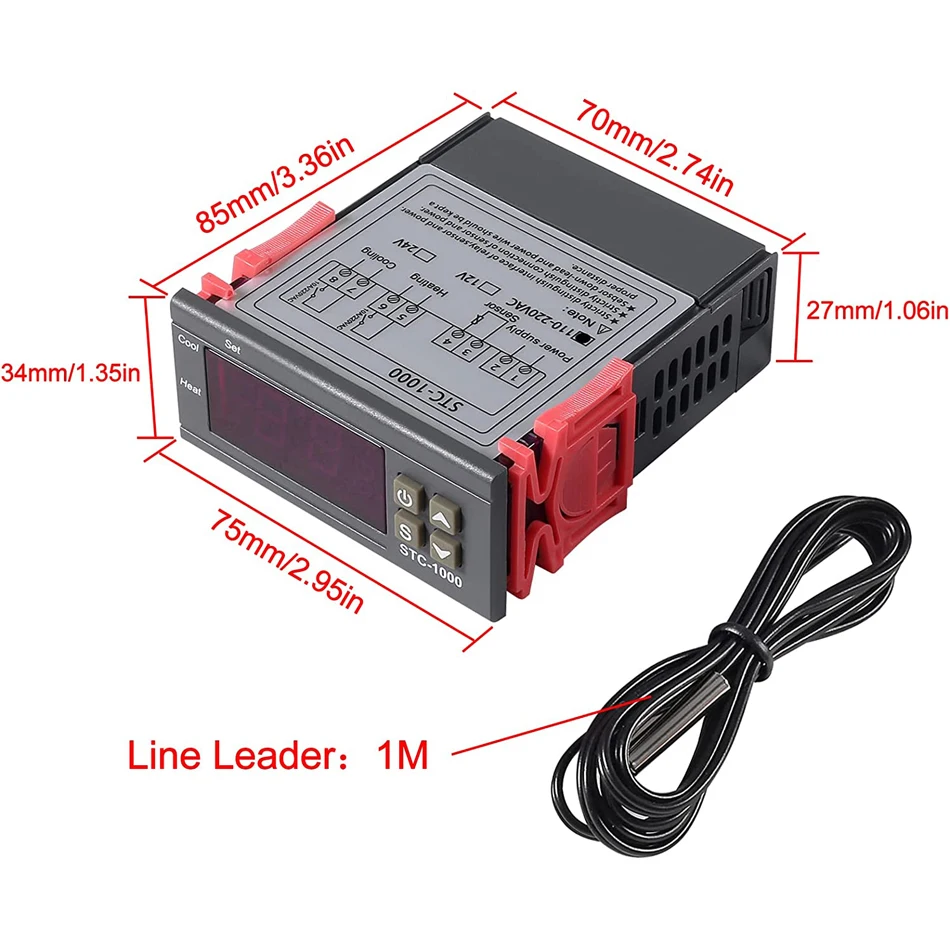

Size: 10*10*10cm

Temperature Measuring Range: -50 - 90 Deg.C

Control temperature range: -50 - 90 Deg.C (adjustable)

Control temperature difference: 0.3 - 10 Deg.C (adjustable)

Resolution: 0.1 Deg.C

Accuracy: ± 1 Deg.C (-50 - 70 Deg.C)

Operating Temperature: 0 - 60 Deg.C

Storage Temperature: -30 - 75 Deg.C

Operating Relative Humidity: 20 ~ 85 % (No condensation)

Alarm Output: Buzzer

Sensor: NTC sensor

Sensor error delay: 1min

Relay contact capacity (Heating): 10A (max) 250 V

Relay contact capacity (Cooling): 10 A (max) 250 V

Compressor delay protection time: 1 ~ 10 minutes (adjustable)

Power Supply: 110~ 220V AC ± 10% , 50 / 60 Hz

Power consumption: < 3 W

Package included:

1 pc *All-Purpose Temperature Controller

1 pc *Cable

Note:

1. Please allow 0-1 inch error due to manual measurement. Thanks for your understanding.

2. monitors are not calibrated same, item color displayed in photos may be showing slightly different from real object.
