2.08 inch OLED Display 256X64 Pixel 2.08" SH1122 driver OLED LCD Module 7pin SPI Interface White With gray scale adjustment
SPECIFICATIONS
Brand Name: FUNKEYDO
Choice: yes
Display Mode: null
Driver IC: SH1122
Hign-concerned Chemical: None
Model Number: 2.08 inch
Origin: Mainland China
Resolution: 128*64,256x64
Type: OLED
is_customized: Yes
Product Desription
Hi Everyone, welcome to our store!

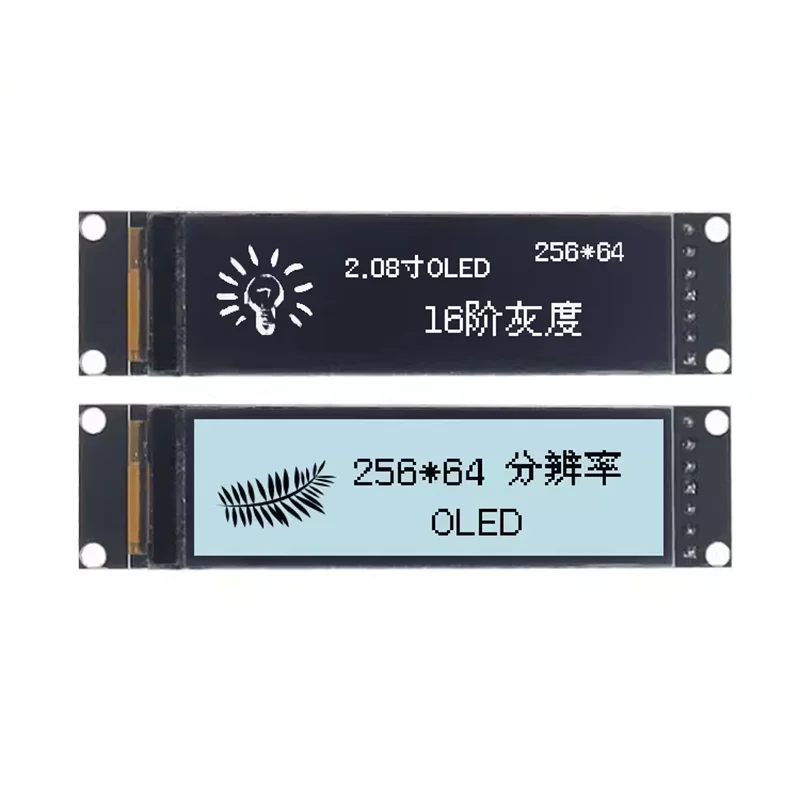

This is a 2.08 inch OLED display module.
256X64 pixel, driver ic SH1122,4 wire SPI interface, white display color.
Product Parameters
Driver chip: SH1122
Support interface: 4-wire SPI
Resolution: 256×64
Display Color: White
OLED Mode: Negative, Full Transparency
Gray Scale Type: 16 Steps Gray Scale
Operating Temperature: -40°C~70°C
Storage Temperature: -40°C~85°C
Operating Voltage: 3.0-5V

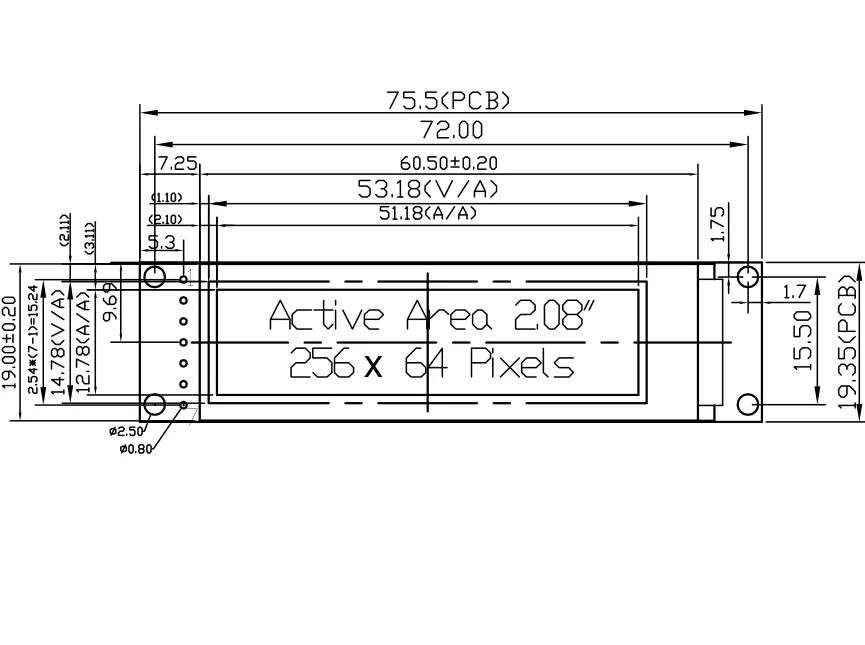

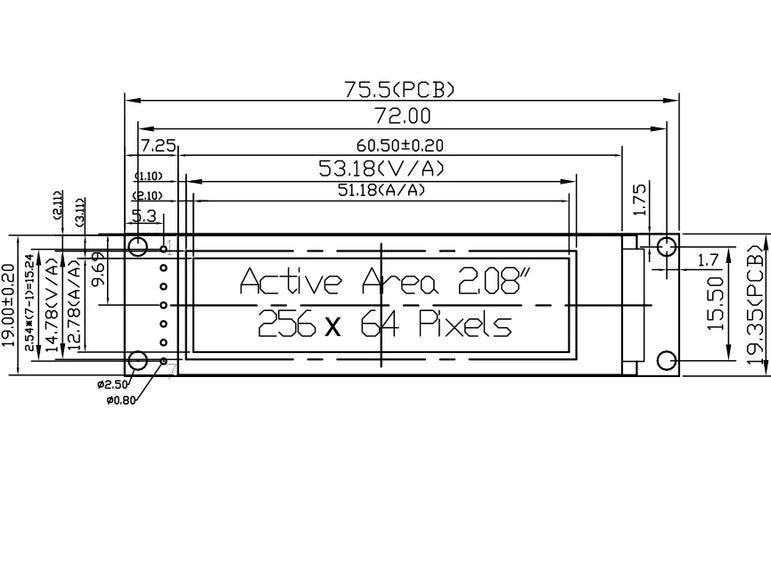

Module Size: 75.5mm×19.35mm×5.9mm
Visible area: 53.18mm×14.78mm
Effective area: 51.18mm×12.78mm
Point distance: 0.20mm×0.20mm
Point size: 0.18mm×0.18mm

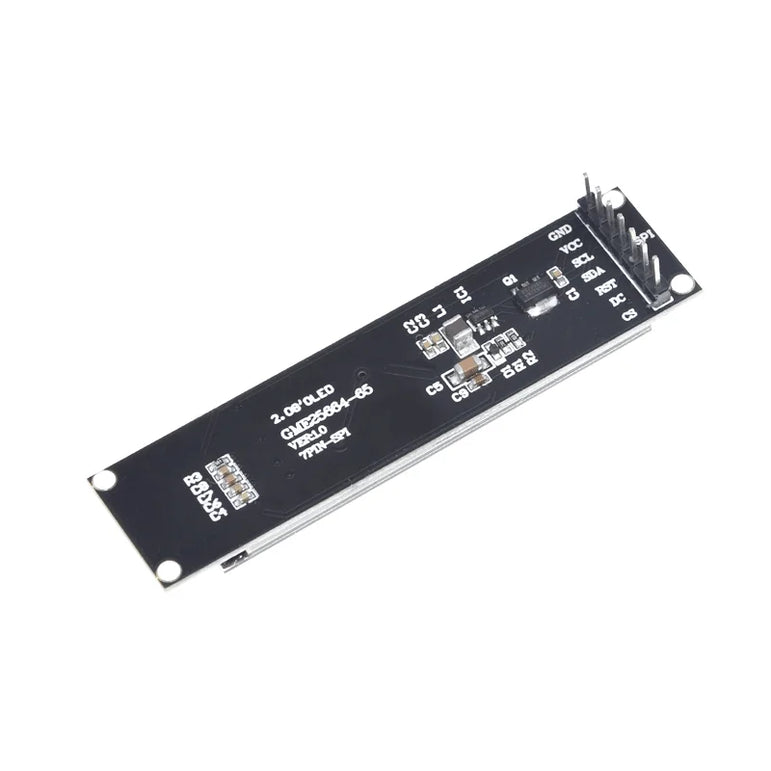

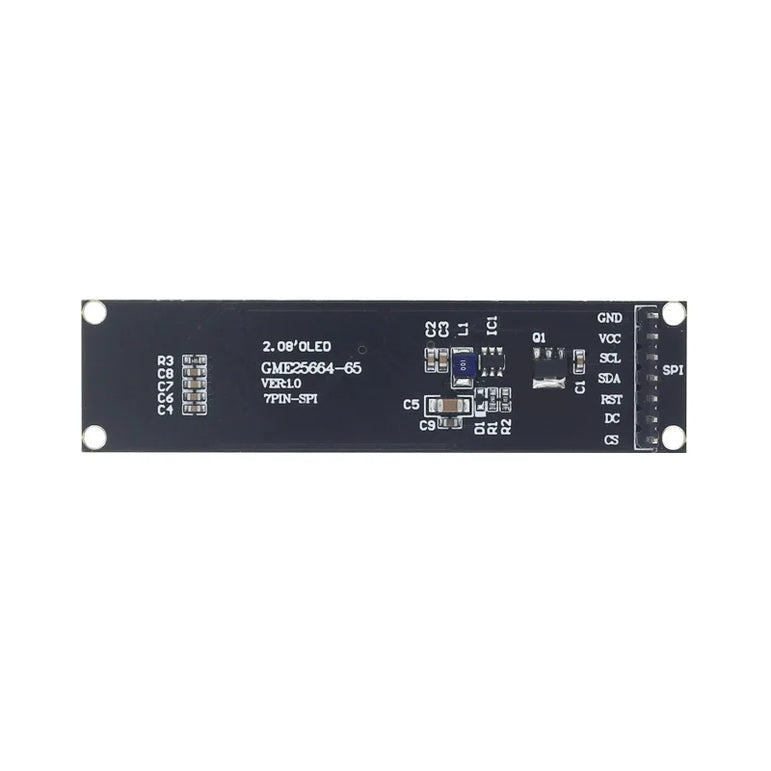

Pin Definition
Pin Symbol Function
1 GND Power Negative
2 VIN Power Positive
3 SCL Clock
4 SDA Data
5 RES Reset
6 DC Command/Data
7 DS Chip Select

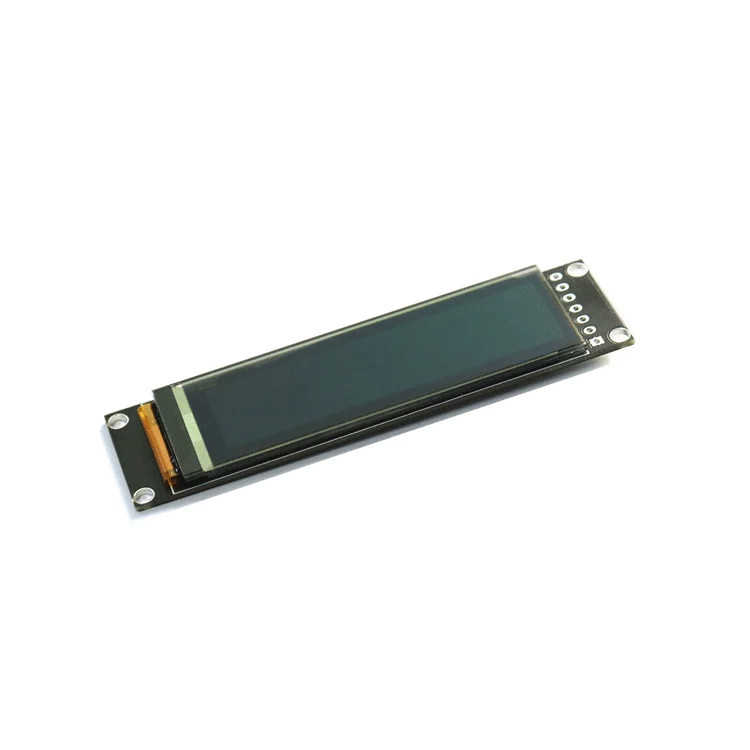

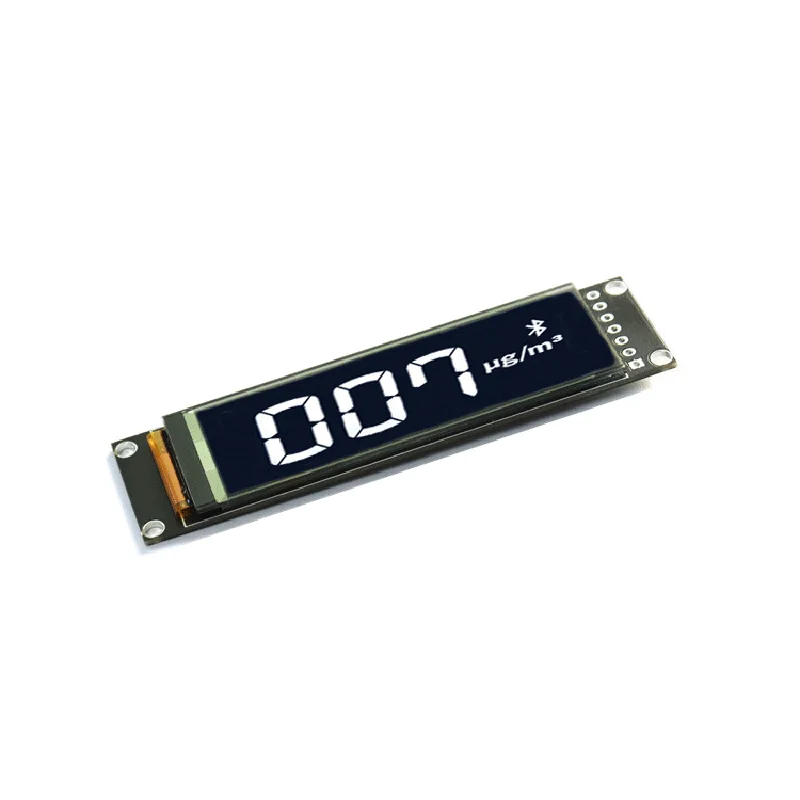

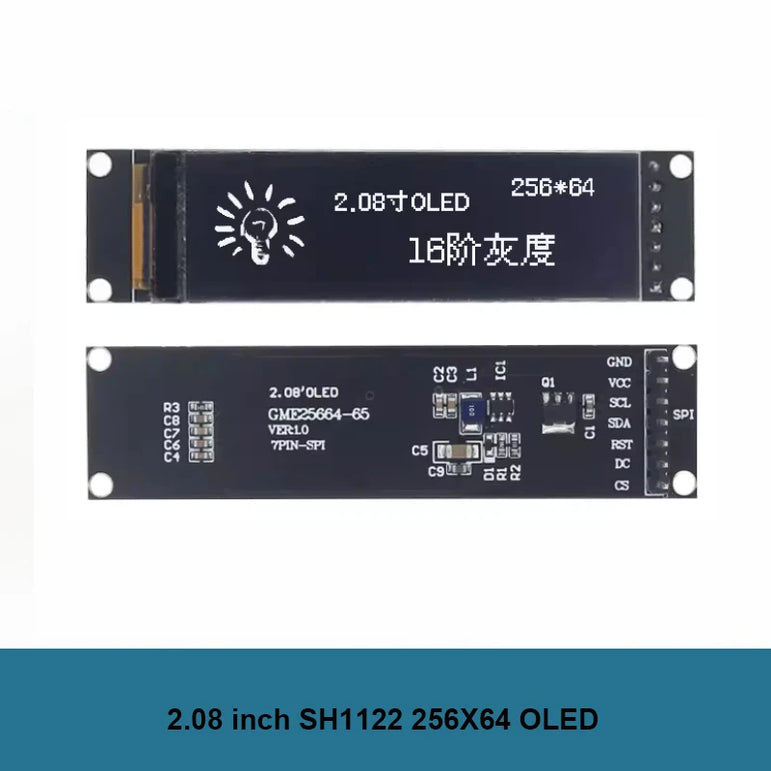

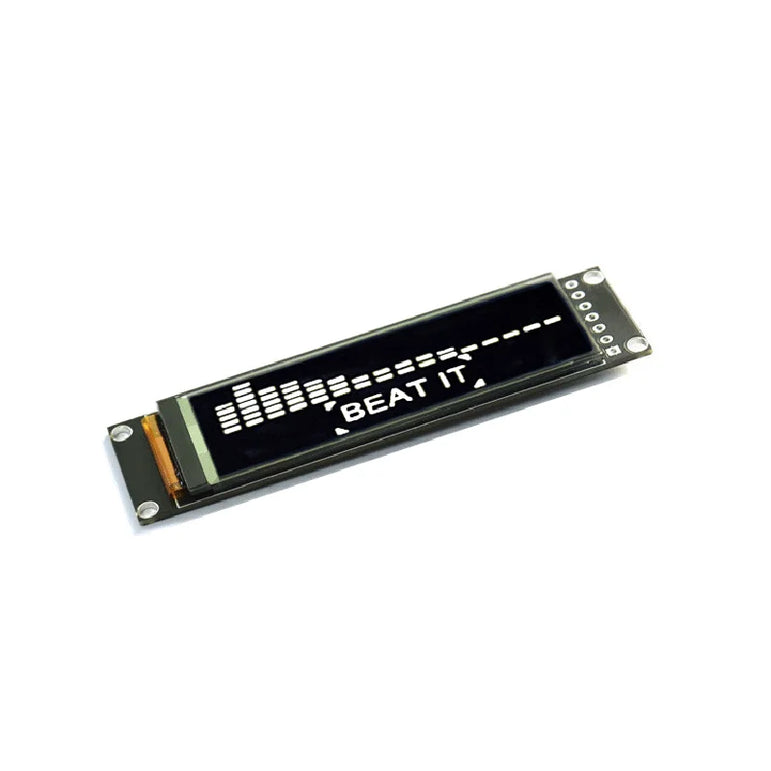

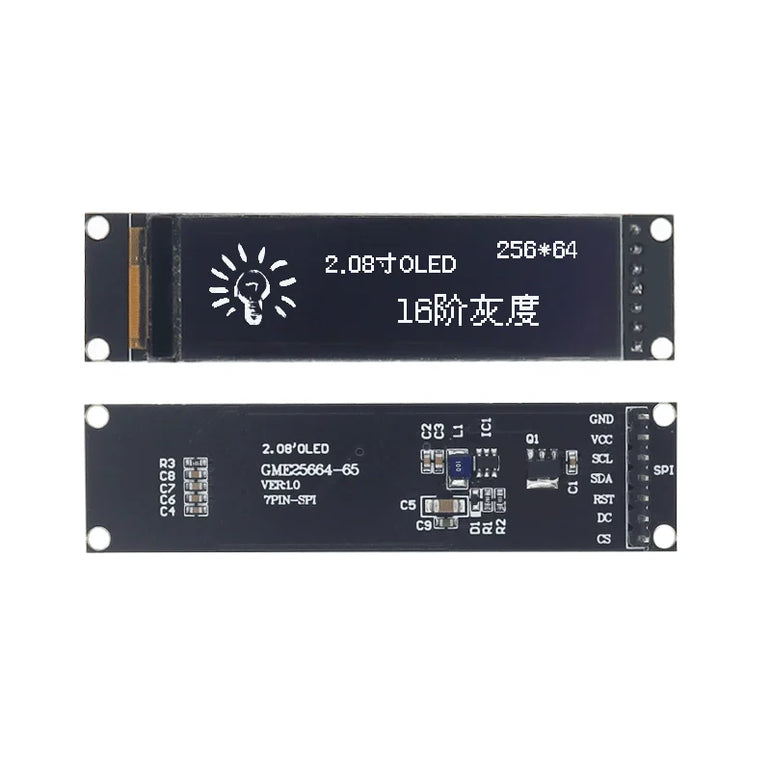

Product Pictures
Packing List
1* 2.08 inch OLED 256*64
