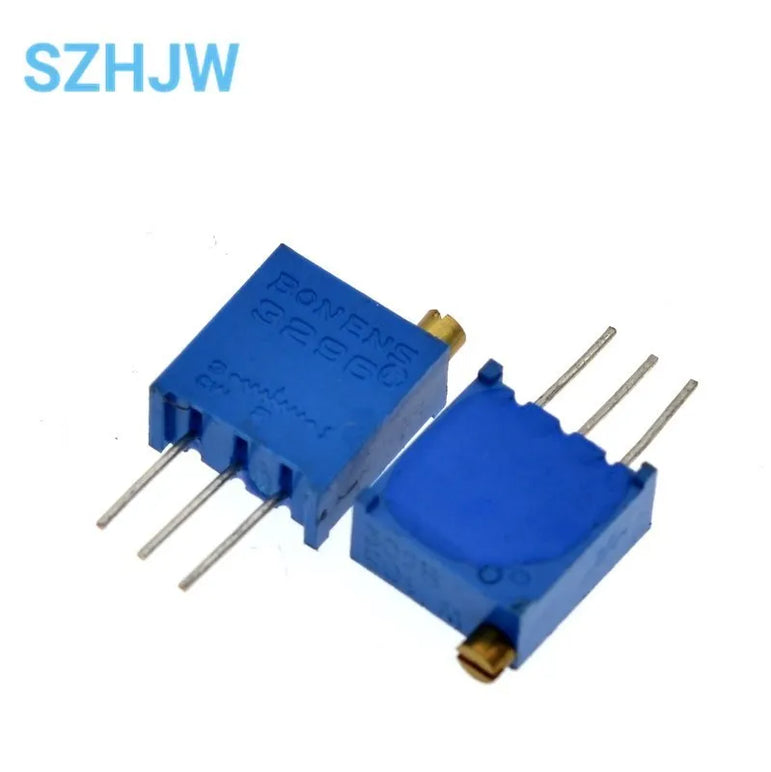

10PCS 3296 potentiometer Kit High Precision 3296W Variable Resistor 100R -1M 200R 500R 1k 2k 5K 10K 20K 50K 100K 200k 500k
SPECIFICATIONS
Brand Name: SZYTF
Choice: yes
Condition: New
Hign-concerned Chemical: None
Max. Operating Voltage: N/A
Operating Temperature: n
Origin: Mainland China
Resistance Tolerance: 1%
Technology: Metal alloy
semi_Choice: yes
Product Description
Potentiometers usually consist of a resistor body and a movable brush.
When the brush moves along the resistor body, the resistance value or voltage that has a certain relationship with the displacement is obtained at the output end.
Potentiometers can be used as both three-terminal components and two-terminal components.
Because its function in the circuit is to obtain an output voltage that has a certain relationship with the input voltage (applied voltage), it is called a potentiometer.
1. Used as a voltage divider
The potentiometer is a continuously adjustable resistor. When the handle or slide of the potentiometer is adjusted, the movable contact slides on the resistor body.
⒉. Used as a varistor
When the potentiometer is used as a varistor, it should be connected as a two-terminal device to obtain a smooth and continuously changing resistance value.
3. Used as a current controller
When the potentiometer is used as a current controller, one of the selected current outputs must be a sliding contact terminal.
Installation method: Insert the lead end of the potentiometer into the hole of the printed board, and tighten it
paste, fix with solder
Rated power consumption: 0.5W
Nominal resistance range: 100~1mQ
Resistance series: E3 series in 1EC63 is preferred, take 1 significant figure, namely 1, 2, 5
Resistance tolerance: soil 10%TCR≤±250×10-6/℃
Resistor body limit voltage: 315V (DC or AC RMS)
Moving contact limit current: 100mA
Withstand voltage (AC peak voltage with a frequency of 40~60Hz)
Under normal atmospheric pressure: 640V
Low voltage 8.5KPa (85mbar): 450V
Climate Category: 55/125/04
Total mechanical stroke: 28±2 turns
Stability rating: 10%
Starting torque: ≤35mN.m
Load wear cycles: 200 weeks
Package: 3296w
Type: Multi-turn adjustable precision resistance standard
Weighing resistance range: 10Q-2m
Resistance tolerance: ±10%
Termination resistance: ≤1%R or 10Q
Contact resistance change: CRV≤±3%R or 5R
Insulation resistance: R≥1GQ (100vdc)
Withstand voltage: 640Vac
Limit moving contact electricity: 100mA
Effective electrical travel:>70% of total mechanical travel>70% of Total mechanical travel
Rated power: 0.5w@70℃, 0W@100℃
Temperature range: -55℃~+100℃
Temperature coefficient: ±250ppm/°C ± 100ppm/°C
