0.96/1.3/1.8/2.4-inch OLED display screen with matrix 4 key interfaces/EC11 rotary encoder combination module IIC/SPI interface

0.96/1.3/1.8/2.4-inch OLED display screen with matrix 4 key interfaces/EC11 rotary encoder combination module IIC/SPI interface
0.96/1.3/1.8/2.4-inch OLED display screen with matrix 4 key interfaces/EC11 rotary encoder combination module IIC/SPI interface
0.96/1.3/1.8/2.4-inch OLED display screen with matrix 4 key interfaces/EC11 rotary encoder combination module IIC/SPI interface
0.96/1.3/1.8/2.4-inch OLED display screen with matrix 4 key interfaces/EC11 rotary encoder combination module IIC/SPI interface
0.96/1.3/1.8/2.4-inch OLED display screen with matrix 4 key interfaces/EC11 rotary encoder combination module IIC/SPI interface
0.96/1.3/1.8/2.4-inch OLED display screen with matrix 4 key interfaces/EC11 rotary encoder combination module IIC/SPI interface
0.96/1.3/1.8/2.4-inch OLED display screen with matrix 4 key interfaces/EC11 rotary encoder combination module IIC/SPI interface
0.96/1.3/1.8/2.4-inch OLED display screen with matrix 4 key interfaces/EC11 rotary encoder combination module IIC/SPI interface
0.96/1.3/1.8/2.4-inch OLED display screen with matrix 4 key interfaces/EC11 rotary encoder combination module IIC/SPI interface
0.96/1.3/1.8/2.4-inch OLED display screen with matrix 4 key interfaces/EC11 rotary encoder combination module IIC/SPI interface
0.96/1.3/1.8/2.4-inch OLED display screen with matrix 4 key interfaces/EC11 rotary encoder combination module IIC/SPI interface
0.96/1.3/1.8/2.4-inch OLED display screen with matrix 4 key interfaces/EC11 rotary encoder combination module IIC/SPI interface
0.96/1.3/1.8/2.4-inch OLED display screen with matrix 4 key interfaces/EC11 rotary encoder combination module IIC/SPI interface
0.96/1.3/1.8/2.4-inch OLED display screen with matrix 4 key interfaces/EC11 rotary encoder combination module IIC/SPI interface
0.96/1.3/1.8/2.4-inch OLED display screen with matrix 4 key interfaces/EC11 rotary encoder combination module IIC/SPI interface

0.96/1.3/1.8/2.4-inch OLED display screen with matrix 4 key interfaces/EC11 rotary encoder combination module IIC/SPI interface

No review yet. Write Review
$13.77 $6.26

Vendor : FETCH BARK LLC

Product Type :

Add To Wishlist
-
+
In Stock SOLD OUT

SPECIFICATIONS

Brand Name: NoEnName_Null

Choice: yes

Display Mode: standard

Hign-concerned Chemical: None

Model Number: display

Origin: Mainland China

Resolution: 128*64

Please refer to the


following detailed


introduction before


deciding which product to


purchase



0.96-inch screen with 4 buttons and 1315 drivers (blue and white)



interface definition


VCC:3.3V


SCL: IIC clock line


SDA: IIC Data Cable


K4: Key interface 4


K3: Key interface 3


K2: Key interface 2


K1: Key interface 1



Wiring diagram



1.3-inch 0.96-inch OLED display screen


with EC11 rotary encoder combination


module IIC interface



Product Features


1. Compact design: Integrated with display screen and


encoder functions, the design is compact and saves space.


2. Rich interfaces: Supports IIC communication interfaces,


making it easy to connect with the main control device.


3. Equipped with OLED screen: Users can perform intuitive


operations by rotating buttons, suitable for viewing


Application scenarios such as numerical adjustment.


4. The rotary encoder can rotate 360 ° and accurately rotate


the position and direction.


5. Equipped with additional return and confirmation buttons,


the button interface is independent and integrated, making it


convenient for DIY


Module Introduction

This module is a combination of OLED IIC interface module and EC11 rotary encoder module, which are not related but are placed on the same board to form an integrated module. It is also equipped with return and confirmation buttons, with independent button interfaces and integrated design, making it convenient for DIY






Black aluminum alloy knob cap


Interface Description


CON (KEY1): Confirm key interface


SDA: OLED Screen IIC Communication Data Interface


SCL: Clock Interface for OLED Screen IIC Communication


PSH: Key interface of EC11


TRA, TRB: Phase A, Phase B of EC11


BAK (KEYO): Return button


GND: Power Ground


VCC: 3.3V power supply positive



Product Features


1. Integrated design: Display screen and encoder integrated,


simple and beautiful, convenient for DIY

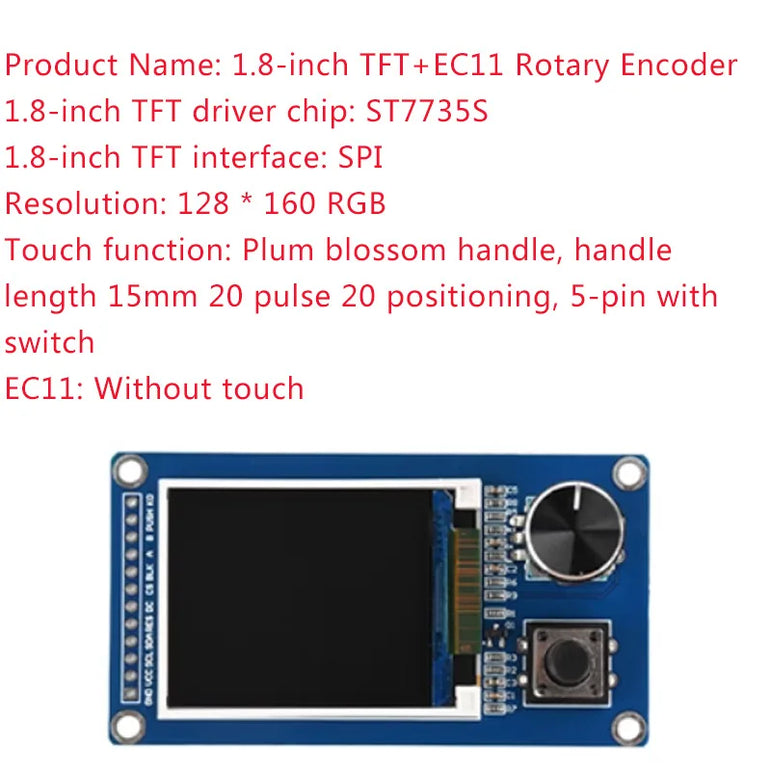

2. Multiple size options: Provide 1.8-inch and 2.4-inch TFT


display screens to meet different needs


3. High resolution display: 1.8-inch 128x160, 2.4-inch


320x240 resolution, clear and delicate


4. SPI interface support: using SPI interface, strong


compatibility, easy to connect and program


5. Encoder with switch: EC11 rotary encoder, 20 pulses, 20


positioning, with switch function



Interface Description:


GND: Power Ground


VCC: 3.3V power supply positive


SCL: Clock interface for TFT screen SPI communication


SDA: Data Interface for TFT Screen SPI Communication


RES: Reset pin


DC: Data Command Selection


CS: Chip selection signal, low level effective


BLK: TFT backlight adjustment, default fully open, can be


disconnected


KO: Can be used as a menu return button or confirmation


button


PUSH: Key interface of EC11


A. B: Phase A and B of EC11
