LILYGO® T-Display ESP32 Development Board, 1.14 Inch LCD Display, Wireless WiFi Bluetooth Module, FLASH 4/16MB, For Arduino

LILYGO® T-Display ESP32 Development Board, 1.14 Inch LCD Display, Wireless WiFi Bluetooth Module, FLASH 4/16MB, For Arduino
LILYGO® T-Display ESP32 Development Board, 1.14 Inch LCD Display, Wireless WiFi Bluetooth Module, FLASH 4/16MB, For Arduino
LILYGO® T-Display ESP32 Development Board, 1.14 Inch LCD Display, Wireless WiFi Bluetooth Module, FLASH 4/16MB, For Arduino
LILYGO® T-Display ESP32 Development Board, 1.14 Inch LCD Display, Wireless WiFi Bluetooth Module, FLASH 4/16MB, For Arduino
LILYGO® T-Display ESP32 Development Board, 1.14 Inch LCD Display, Wireless WiFi Bluetooth Module, FLASH 4/16MB, For Arduino
LILYGO® T-Display ESP32 Development Board, 1.14 Inch LCD Display, Wireless WiFi Bluetooth Module, FLASH 4/16MB, For Arduino
LILYGO® T-Display ESP32 Development Board, 1.14 Inch LCD Display, Wireless WiFi Bluetooth Module, FLASH 4/16MB, For Arduino
LILYGO® T-Display ESP32 Development Board, 1.14 Inch LCD Display, Wireless WiFi Bluetooth Module, FLASH 4/16MB, For Arduino
LILYGO® T-Display ESP32 Development Board, 1.14 Inch LCD Display, Wireless WiFi Bluetooth Module, FLASH 4/16MB, For Arduino
LILYGO® T-Display ESP32 Development Board, 1.14 Inch LCD Display, Wireless WiFi Bluetooth Module, FLASH 4/16MB, For Arduino
LILYGO® T-Display ESP32 Development Board, 1.14 Inch LCD Display, Wireless WiFi Bluetooth Module, FLASH 4/16MB, For Arduino
LILYGO® T-Display ESP32 Development Board, 1.14 Inch LCD Display, Wireless WiFi Bluetooth Module, FLASH 4/16MB, For Arduino
LILYGO® T-Display ESP32 Development Board, 1.14 Inch LCD Display, Wireless WiFi Bluetooth Module, FLASH 4/16MB, For Arduino

LILYGO® T-Display ESP32 Development Board, 1.14 Inch LCD Display, Wireless WiFi Bluetooth Module, FLASH 4/16MB, For Arduino

No review yet. Write Review
$46.86 $21.30

Vendor : FETCH BARK LLC

Product Type :

Add To Wishlist
CHINA United States
-
+
In Stock SOLD OUT

SPECIFICATIONS

16MB CH340K: Free Shipping,G511-08,Q125

4MB CH340K: G511-06

4MB CH9102F: Q224

Brand Name: lilygo

Certification: FCC,CE,MIC,UKCA

Display Mode: 1.14"

Hign-concerned Chemical: None

Model Number: T-Display

Origin: Mainland China

Resolution: 320*240

Support 1: Purchasing

Support 2: Custom

Support 3: Custom Made

Type: TFT

is_customized: Yes

Product Specifications

MCU: ESP32 series of SoCs embedded, Xtensa® dual-core 32-bit LX6 microprocessor

  • Wireless features: Wi-Fi 802.11 b/g/n, BL V4.2+BLE

  • Programming Platforms: Arduino-ide, Micropython

  • Clock Frequency: Main Frequency up to 240MHz

  • Flash: 4MB / 16MB

  • Onboard Functions: Button: IO06 + IO07, Support: battery power detection


1.14 inch ST7789V IPS TFT LCD

  • Screen: Full-colour TFT Display

  • Resolution: 135*240px

  • Drive: ST7789V

  • Working Power Supply: 3.3V

  • Diagonal: 1.14"

  • Interface: 4-Wire SPI

  • I2C Interface: SDA--IO21  SCL--IO22

T-Display Features:

  1. Colorful Display

  2. Low power consumption

  3. Battery-powered charging circuit

  4. Have Custom Button


Firmware
  • T-Display_Github

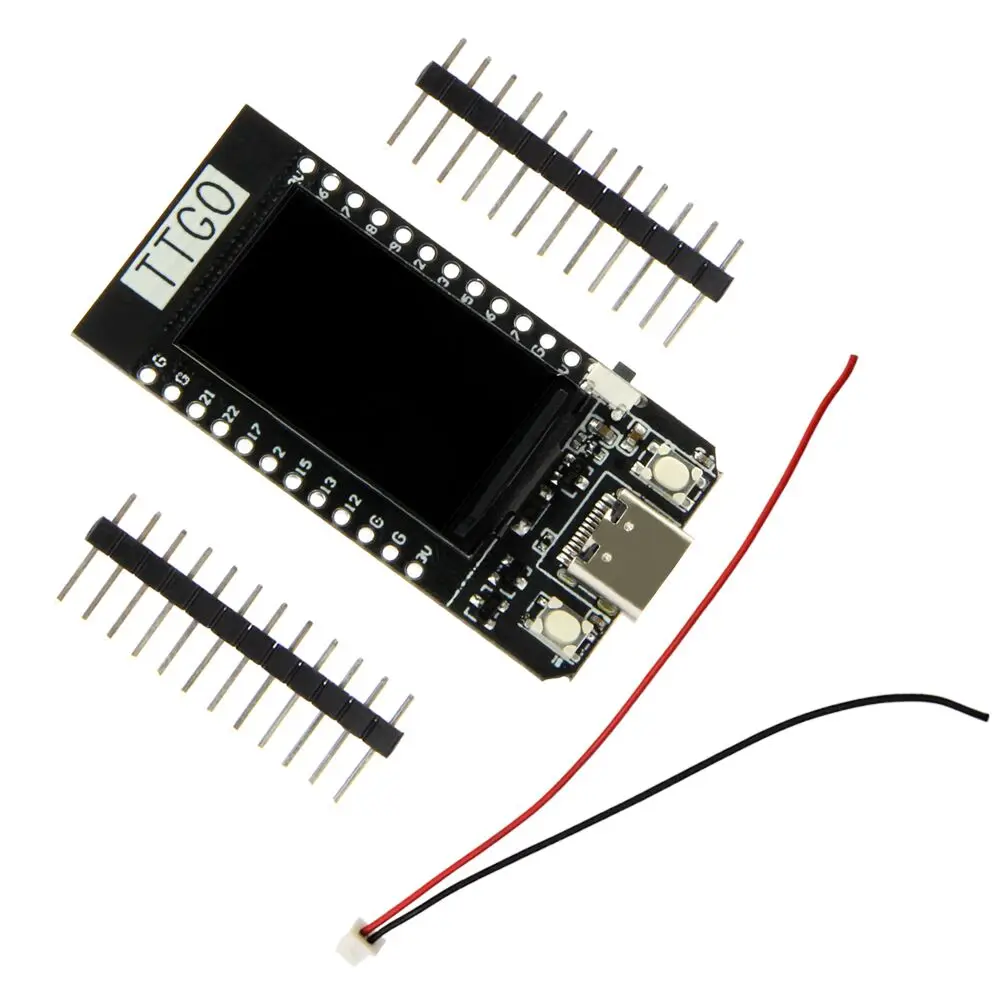

Shipping List


  • 1 X T-Display Module

  • 1 X Charging Cable

  • 2 X Pin

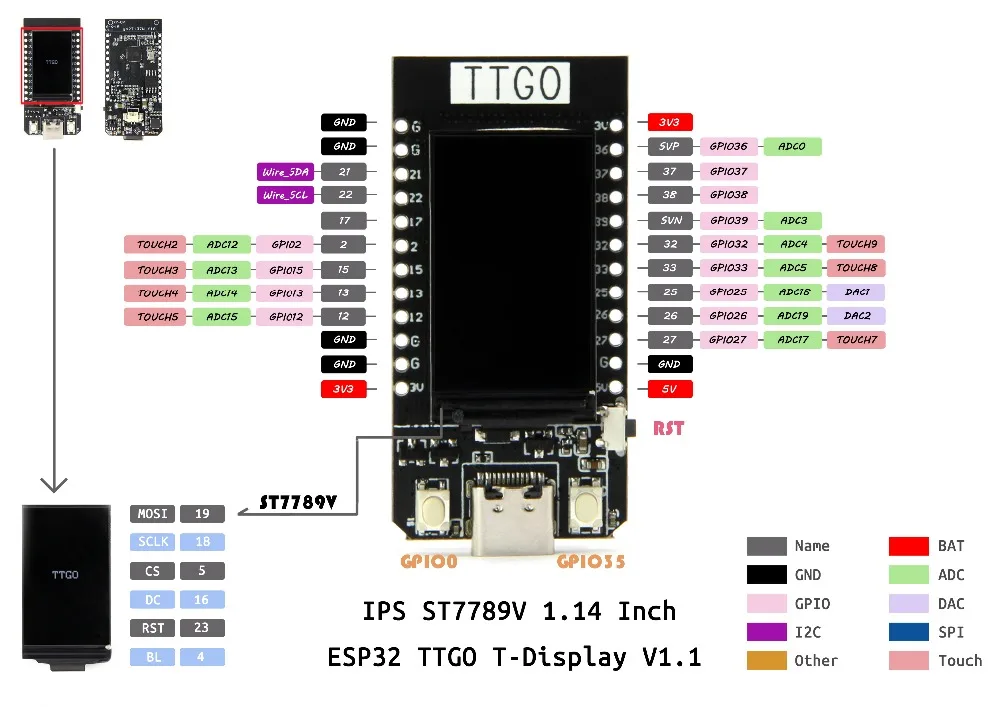

PIN MAP




Product Certification

Statement:

  • Has passed CE certification; LILYGO exclusive; unauthorized use is prohibited, otherwise legal responsibility will be pursued.

LILYGO has authorized Seatechnolgy Store

Seatechnolgy Store 2022/2/17

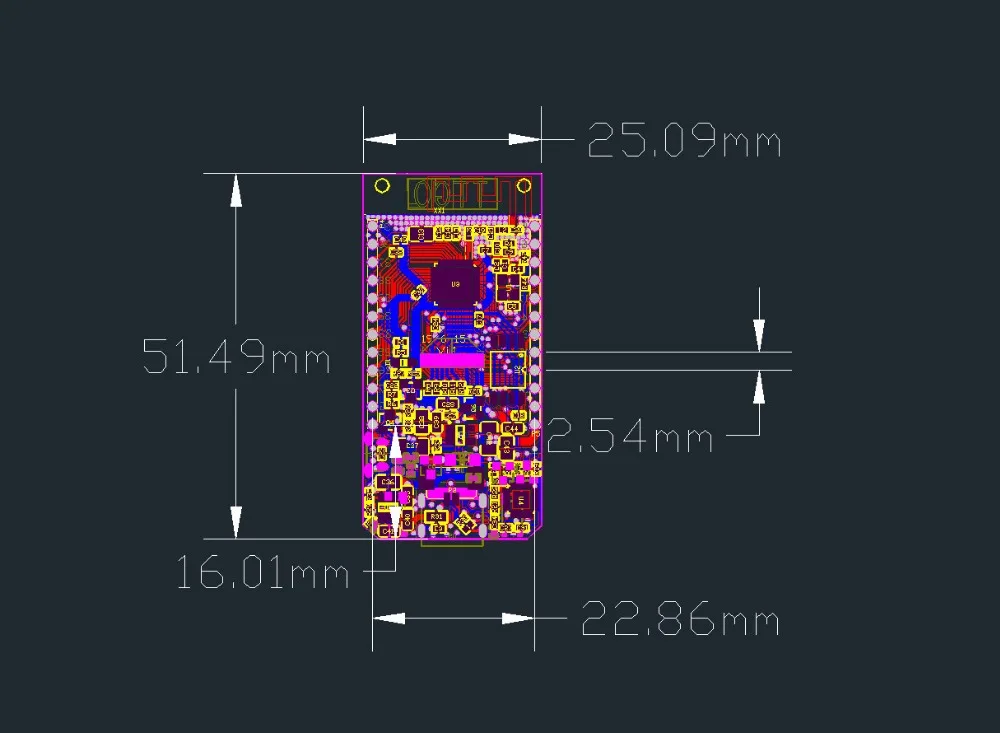

Product Size



Product Size
